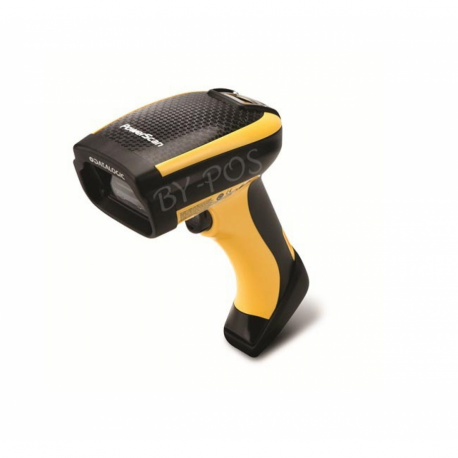

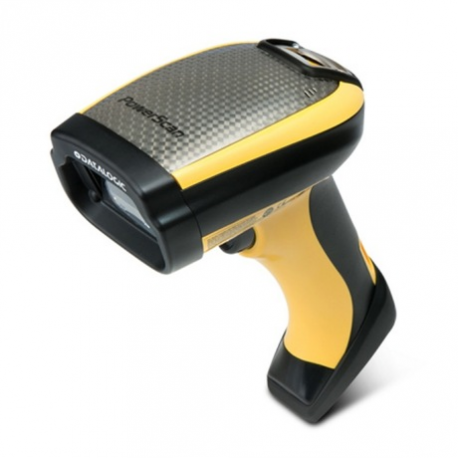

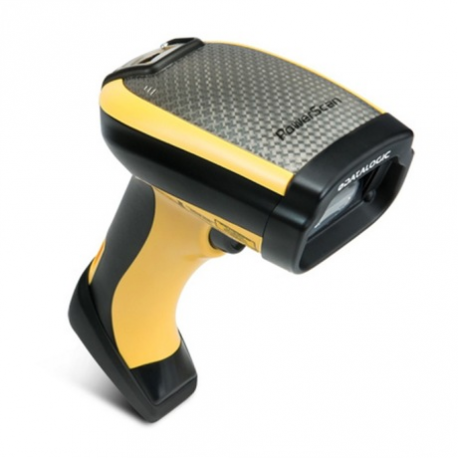

Datalogic PowerScan PD9531-DPM - Barcode scanner - handheld - 2D imager - decoded - interface cable required
Datalogic PowerScan PD9531-DPM - Barcode scanner - handheld - 2D imager - decoded - interface cable required
Manufacturer
•DATALOGIC
Reference
•PD9531-DPM
Article
•1551413
Intrastat
•84716070
Shipping weight
•0.482 kg
Manufacturer price
•1175.00 €
Total quantity in stocks
•20
Nearest delivery
•23.03.2026
Handheld scanner, industry, 2D, imager (high density), DPM, 3GL, multi-interface (RS232, KBW, USB), IP65, order separately: interface cable, colour: black, yellow
Type
Barcode scanner - handheld
Colour
Black, yellow
Interface Type
Interface cable required
Minimum Bar Width
2.5 mil
Scan Element Type
2D imager
Light Source Wave Length
630-680 nm
Scan Mode
Single-pass
Max Working Distance
110 cm
Skew (Degrees)
40
Pitch (Degrees)
40
Print Contrast Signal (PCS)
15%
Decode Capability
EAN/JAN, Industrial 2 of 5, Code 39, ISBT 128, IATA, ISBN, GS1 DataBar, QR code, MaxiCode, Aztec code, Code 32, Code 39 Full ASCII, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Interleaved 2 of 5, Postnet, PDF417, MSI-Plessey, Data Matrix, PLANET, Australian Post, China Post, Japanese Post, Kix (Netherlands) Post, MacroPDF417, Royal Mail, Micro QR code, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, Swedish Post, Standard 2 of 5, GS1 DataBar Composites, GS1 DataBar Stacked, China Han Xin Code, Portuguese Post
TTL Decoding
Decoded
Connectivity Technology
Wired
OK Notification
Beeper, LED indicator
Features
Triggered, image capturing, rugged, Datalogic Three Green Lights (3GL)
Compliant Standards
FCC Class B certified, VCCI, BSMI, GOST, NOM, IEC 60950, UL 60950, CSA 22.2 No. 60950, ICES-003 Class B, EMC, FCC Part 15, IC, RoHS, Laser Class 2, KCC, REACH, EN 60825-1, IP65
Voltage
DC 5 V
Electric Current Required
335 mA (operating), 180 mA (standby)
Width
7.4 cm
Depth
11 cm
Height
21.2 cm
Weight
330 g
Service & Support
Limited warranty - 3 years
Min Operating Temperature
-20 °C
Max Operating Temperature
50 °C
Humidity Range Operating
0 - 95% (non-condensing)
Drop Specification
2 m
