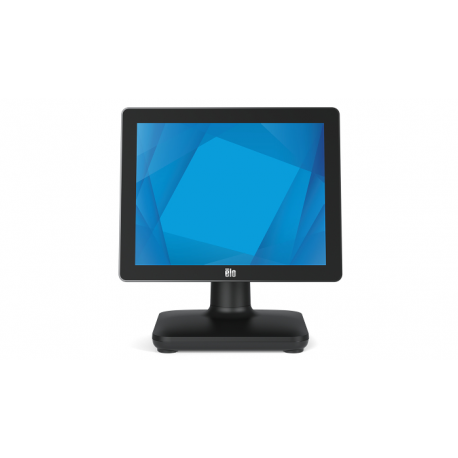

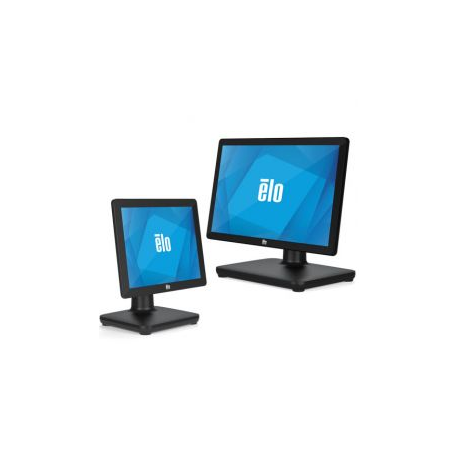

EloPOS System - With I / O Hub Stand - all-in-one - 1 x Core i3 8100T / 3.1 GHz - RAM 4 GB - SSD 128 GB - UHD Graphics 630 - GigE - WLAN: 802.11a / b / g / n / ac, Bluetooth 5.0 - no OS - monitor: LED 17" 1280 x 1024 (SXGA) touchscreen - black
EloPOS System - With I / O Hub Stand - all-in-one - 1 x Core i3 8100T / 3.1 GHz - RAM 4 GB - SSD 128 GB - UHD Graphics 630 - GigE - WLAN: 802.11a / b / g / n / ac, Bluetooth 5.0 - no OS - monitor: LED 17" 1280 x 1024 (SXGA) touchscreen - black
Manufacturer
•ELO TOUCHSYSTEMS
Reference
•E402576
Article
•1764873
Intrastat
•84714900
Shipping weight
•9.246 kg
Manufacturer price
•1477.00 €
POS System, Touchscreen, Projected Capacitive, 43.2 cm (17"), resolution: 1280x1024 pixels, Intel Core i3, 3,1 GHz, RAM: 4 GB, SSD: 128 GB, USB (4x), powered-USB (3x), RS232 (2x), Bluetooth, Ethernet, Wi-Fi (802.11ac), audio, VESA mount (75x75 mm), 5ms, brightness: 212cd, viewing angle: 170/160°(H/V), contrast: 1000:1, incl.: cable (RS232), power supply unit, power cable, stand, QSG, order separately: operating system, colour: black
Type
Point of sale terminal
Product Form Factor
All-in-one
Embedded Security
Trusted Platform Module (TPM 2.0) Security Chip
Colour
Black
CPU
Intel Core i3 (8th Gen) 8100T
Clock Speed
3.1 GHz
Number of Cores
Quad-Core
CPU Qty
1
Max CPU Qty
1
Processor Main Features
Intel Smart Cache
CPU Socket
LGA1151 Socket
Chipset Type
Intel H310
Installed Size
6 MB
Cache Per Processor
6 MB
Installed Size
4 GB / 32 GB (max)
Technology
DDR4 SDRAM - non-ECC
Effective Memory Speed
2400 MHz
Rated Memory Speed
2666 MHz
Form Factor
SO-DIMM 260-pin
Slots
2 (Total) / 1 (empty)
Features
Unbuffered
Configuration Features
1 x 4 GB
Type
SSD - M.2
Capacity
1 x 128 GB
Interface Type
SATA 6Gb/s
SSD Endurance
80 TB
Type
1 x SATA
Controller Interface Type
SATA 6Gb/s
Type
No optical drive
Monitor Type
LED
Touchscreen
Yes (10-point multi-touch)
Diagonal Size
17"
Native Resolution
1280 x 1024 (SXGA)
Widescreen Display
No
Image Aspect Ratio
5:4
Horizontal Viewing Angle
170
Vertical Viewing Angle
160
Response Time
5 ms
Image Brightness
250 cd/m²
Image Contrast Ratio
1000:1
Monitor Features
Anti-glare, Zero-Bezel Design, TouchPro Pro Projected Capacitive (PCAP) technology
Graphics Processor
Intel UHD Graphics 630
Sound Output Mode
Stereo
Speakers Included
2 x right / left channel
Wireless LAN Supported
Yes
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0
Slots
1 (total) / 0 (free) x M.2 Card
Interfaces
3 x USB 3.0 ¦ 2 x USB 2.0 ¦ 4 x USB 2.0 - micro-USB ¦ 2 x PoweredUSB (12 V) ¦ 1 x PoweredUSB (24 V) ¦ 1 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x cash drawer (12V/24 V) ¦ 1 x headphones/microphone ¦ 2 x serial - RJ-45 ¦ 1 x DisplayPort/USB-C 3.0 (27 Watt charging)
Included Accessories
Cable cover locking screw
Cables Included
RJ-45 to DB-9 cable
VESA Mounting Interface
75 mm
Compliant Standards
UL, TUV, VCCI, C-Tick, cUL, CB, CCC, FCC, S Mark, RCM, Mexico NOM
Device Type
Power adapter
Installed Qty
1
Voltage Required
AC 120/230 V (50/60 Hz)
Power Provided
180 Watt
Power Consumption Operational
63 Watt
OS Provided
No operating system
Service & Support
Limited warranty - 3 years
Weight
6.7 kg
Shipping Width
47.6 cm
Shipping Depth
28.3 cm
Shipping Height
47.8 cm
Shipping Weight
9 kg
Min Operating Temperature
0 °C
Max Operating Temperature
35 °C
Humidity Range Operating
20 - 80% (non-condensing)
