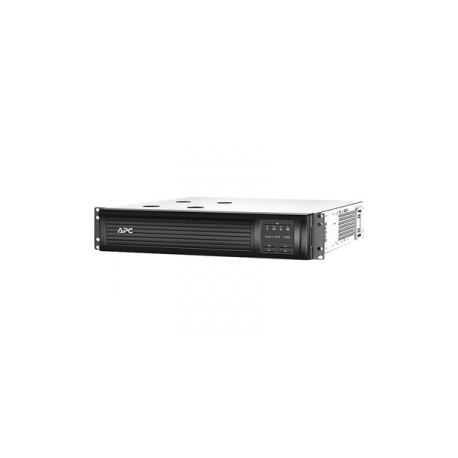

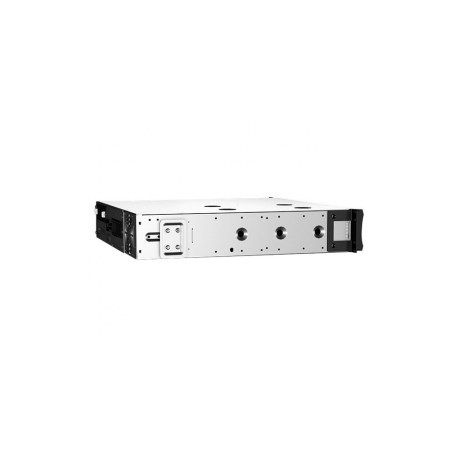

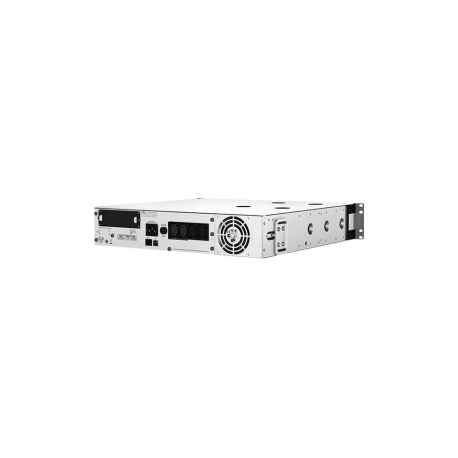

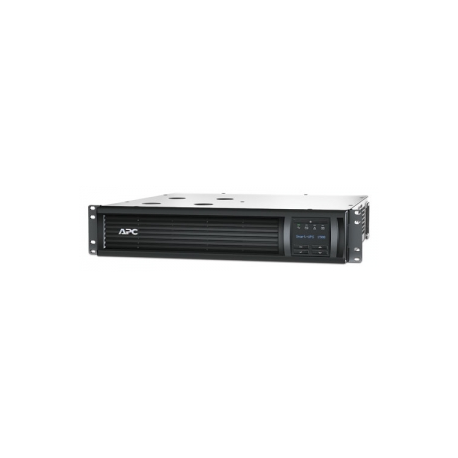

APC Smart-UPS 1500 LCD - UPS (rack-mountable) - AC 230 V - 1 kW - 1500 VA - RS-232, USB - output connectors: 4 - 2U - black - for P / N: AR4024SPX432, NBWL0356A, SCL500RM1UC, SCL500RM1UNC, SMTL1000RM2UC, SMTL750RM2UC
APC Smart-UPS 1500 LCD - UPS (rack-mountable) - AC 230 V - 1 kW - 1500 VA - RS-232, USB - output connectors: 4 - 2U - black - for P / N: AR4024SPX432, NBWL0356A, SCL500RM1UC, SCL500RM1UNC, SMTL1000RM2UC, SMTL750RM2UC
Manufacturer
•SCHNEIDER
Reference
•SMT1500RMI2U
Article
•68685
Intrastat
•84734080
Shipping weight
•33.6 kg
<ul><li>Green mode</li><li>Energy meter</li><li>Intuitive LCD interface</li><li>Single switched outlet group</li><li>Pure sine wave output on battery</li><li>Cold-start capable</li><li>SmartSlot</li><li>Temperature-compensated battery charging</li><li>Intelligent battery management</li><li>Power conditioning</li><li>Automatic restart of loads after UPS shutdown</li><li>Disconnected battery notification</li><li>Network manageable</li><li>Audible alarms</li><li>Serial connectivity</li><li>Hot-swappable batteries</li><li>Predictive failure notification</li><li>Resettable circuit breakers</li><li>Battery failure notification</li></ul>
Green mode bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection. Energy meter provides actual kilowatt hours of usage for energy conscious users. Intuitive LCD interface provides clear and accurate information with the ability to configure the UPS locally with easy to use navigation keys. Single switched outlet group may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on / off and non-critical load shedding. Pure sine wave output on battery simulates utility power to provide a high degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics. Cold-start capable provides temporary battery power when the utility power is out.<br /><br /><p> </p>
Device Type
UPS - rack-mountable
Height (Rack Units)
2U
Colour
Black
UPS Technology
Line interactive
Input Voltage
AC 230 V
Input Voltage Range
AC 160 - 286 V
Input Voltage Range (Adjustable)
AC 151 - 302 V
Frequency Provided
57 - 63 Hz
Frequency Required
47/63 Hz
Input Connectors
Power IEC 60320 C14

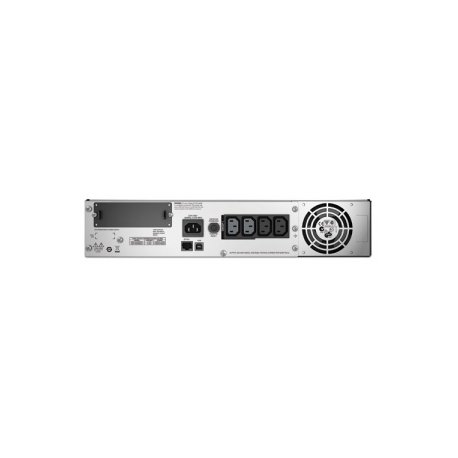

Power Output Connectors Details
4 x power IEC 60320 C13
Output Voltage
AC 230 V 57 - 63 Hz
Power Capacity
1 kW / 1500 VA
Output Waveform
Sinewave
Surge Suppression
Yes
Surge Energy Rating
459 Joules
Technology
Lead Acid
Run Time (Up To)
7.2 min at full load ¦ 25.8 min at half load
Recharge Time
3 hours
Remote Management Interface
RS-232, USB
Interfaces
1 x management (RS-232) ¦ 1 x management (USB)
Expansion Slots
1 SmartSlot
Cables Included
Serial cable ¦ USB cable
Rack Mounting Kit
Included
Features
Audible alarm, LCD display, Automatic Voltage Regulation (AVR), cold-start function
Compliant Standards
TUV, C-Tick, VDE, EN 50091-2, RoHS Exemption 7b, EN 50091-1, REACH
Software Included
Drivers & Utilities
Service & Support
Limited warranty - 3 years ¦ Limited warranty - batteries - 2 years
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 95%
Sound Emission
46 dBA
Width
43.2 cm
Depth
45.7 cm
Height
8.9 cm
Weight
28.6 kg
Shipping Width
59.4 cm
Shipping Depth
60.3 cm
Shipping Height
25.1 cm
Shipping Weight
31.9 kg
Designed For
P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC1021, ACDC2513, ACF001, ACF002, ACF003, ACF101BLK, ACF102BLK, ACF201BLK, ACF400, ACF600, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR100, AR100HD, AR202, AR203A, AR204A, AR2101, AR2102BLK, AR2144BLK, AR2145BLK, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR2900, AR2901, AR3000, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W
