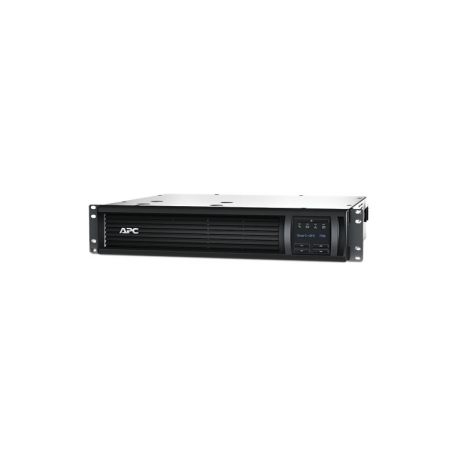

APC Smart-UPS 750 LCD - UPS (rack-mountable) - AC 230 V - 500 Watt - 750 VA - RS-232, USB - output connectors: 4 - 2U - black - for P / N: AR4018SPX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, NBWL0356A
APC Smart-UPS 750 LCD - UPS (rack-mountable) - AC 230 V - 500 Watt - 750 VA - RS-232, USB - output connectors: 4 - 2U - black - for P / N: AR4018SPX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, NBWL0356A
Manufacturer
•APC
Reference
•SMT750RMI2U
Article
•77303
Intrastat
•84734080
Shipping weight
•22 kg
<ul><li>Reduces utlility costs, generates less heat</li><li>Provides actual kilowatt hours of usage for energy conscious users</li><li>Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys</li><li>Provides temporary battery power when the utility power is out</li><li>Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection</li></ul>
High online efficiency reduces utlility costs, generates less heat. Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection. Energy meter provides actual kilowatt hours of usage for energy conscious users. Predictive replace battery date dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning. Intuitive LCD interface provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys. Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding. Pure sine wave output on battery simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics. Cold-start capable provides temporary battery power when the utility power is out. Temperature-compensated battery charging prolongs battery life by regulating the charge voltage according to battery temperature.<br /><br /><p> </p>
Device Type
UPS - rack-mountable
Battery Enclosure Type
Plug-in module
Height (Rack Units)
2U
Colour
Black
UPS Technology
Line interactive
Input Voltage
AC 230 V
Input Voltage Range
AC 160 - 286 V
Input Voltage Range (Adjustable)
AC 151 - 302 V
Frequency Provided
57 - 63 Hz
Frequency Required
50/60 Hz
Input Connectors
Power IEC 60320 C14

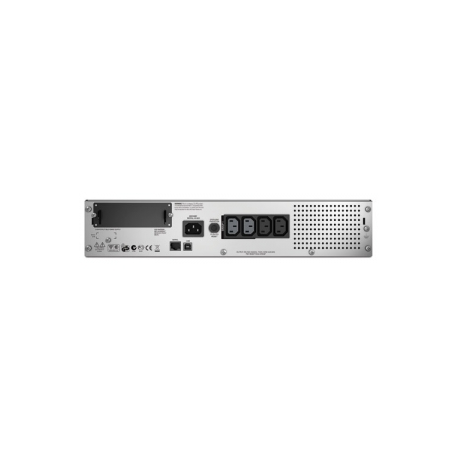

Power Output Connectors Details
4 x power IEC 60320 C13
Output Voltage
AC 220/230/240 V ± 5% - 57 - 63 Hz
Power Capacity
500 Watt / 750 VA
Output Waveform
Sinewave
Surge Suppression
Yes
Surge Energy Rating
459 Joules
Quantity
1
Technology
Lead Acid
Run Time (Up To)
5.5 min at full load ¦ 16 min at half load
Recharge Time
3 hours
Remote Management Interface
RS-232, USB
Interfaces
1 x management (USB) - 4 pin USB Type B ¦ 1 x management (RS-232) - RJ-45
Expansion Slots
1 SmartSlot
Cables Included
Serial cable - external ¦ USB cable - external
Rack Mounting Kit
Included
Features
Audible alarm, LCD display, cold-start function
Compliant Standards
TUV, C-Tick, VDE, EN 50091-2, RoHS Exemption 7b, EN 50091-1, REACH
Software Included
Drivers & Utilities
Service & Support
Limited warranty - 3 years ¦ Limited warranty - batteries - 2 years
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 95%
Sound Emission
42 dBA
Width
43.2 cm
Depth
40.6 cm
Height
8.9 cm
Weight
17.3 kg
Shipping Width
54.6 cm
Shipping Depth
58.4 cm
Shipping Height
24.1 cm
Shipping Weight
21.2 kg
Designed For
P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC1021, ACDC2513, ACF001, ACF002, ACF003, ACF101BLK, ACF102BLK, ACF201BLK, ACF400, ACF600, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR100, AR100HD, AR202, AR203A, AR204A, AR2101, AR2102BLK, AR2144BLK, AR2145BLK, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR2900, AR2901, AR3000, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W
