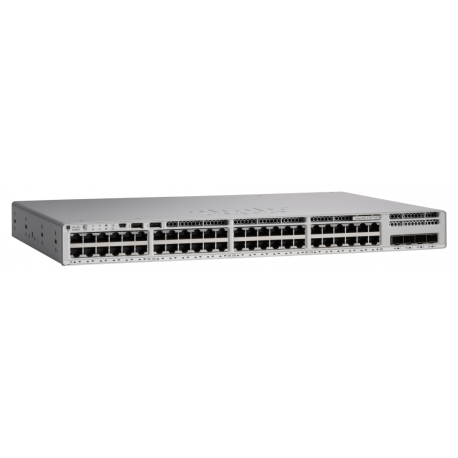

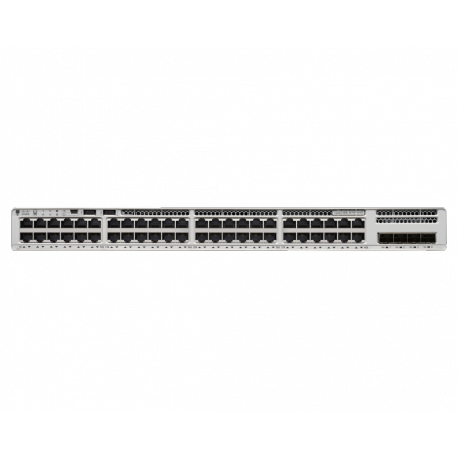

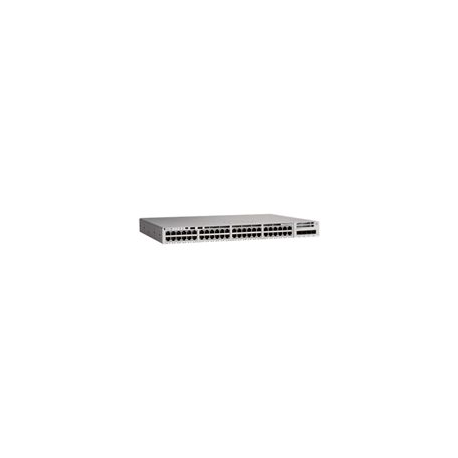

Switch - 48 ports - L3 - Managed

Rack-mountable

Gigabit Ethernet

48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+

PoE+

Stacking bandwidth: 80 Gbps ¦ Switching capacity: 176 Gbps ¦ Forwarding rate: 261.9 Mpps

Virtual networks: 1 ¦ MAC addresses: 16000 ¦ IPv4 routes: 11000 ¦ IPv4 routing table entries: 3000 ¦ IPv6 routing table entries: 1500 ¦ Multicast scale: 1000 ¦ ACL scale entries: 1500 ¦ FNF entries: 16000 ¦ Switched virtual interfaces (SVIs): 512 ¦ Queues per port (egress): 8

9198 bytes

OSPF, RIP, VRRP, policy-based routing (PBR), MSTP

SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, NETCONF, RESTCONF

EIGRP Stub Routing, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), Remote Switch Port Analyzer (RSPAN), Class of Service (CoS), Flexible NetFlow (FNF), DiffServ Code Point (DSCP) support, MACsec support, 6MB packet buffer, Control plane protection (CoPP), Source-Specific Multicast (SSM), Blue Beacon LED, Energy-Efficient Ethernet (EEE), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Superior QoS, Committed Information Rate (CIR)

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3bz

2 GB

4 GB

RFID tag

48 x 1000Base-T RJ-45 PoE+ ¦ 4 x 10GBase-X SFP+

Internal power supply (not installed)

2

AC 100-240 V

346,270 hours

Plug and Play, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, AES-128, RoHS, CNS 13438, EN 55022 Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317

44.5 cm

4.4 cm

28.8 cm

5.5 kg

Limited warranty - advance parts replacement - lifetime - response time: next business day
