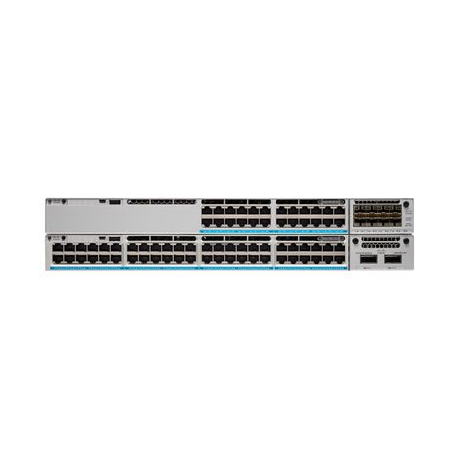

Cisco Catalyst 9300 - Network Essentials - switch - L3 - Managed - 48 x 10/100/1000 - rack-mountable
Cisco Catalyst 9300 - Network Essentials - switch - L3 - Managed - 48 x 10/100/1000 - rack-mountable
Manufacturer
•CISCO
Reference
•C9300-48S-E
Article
•1828555
Intrastat
•85176200
Shipping weight
•10.608 kg
Total quantity in stocks
•9
Nearest delivery
•30.03.2026
Device Type
Switch - 48 ports - L3 - Managed - stackable
Enclosure Type
Rack-mountable 1U
Subtype
Gigabit Ethernet
Ports
48 x 10/100/1000
Performance
Switching capacity: 128 Gbps
Stacking bandwidth: 480 Gbps
Forwarding rate: 190.48 Mpps
Capacity
IPv4 routing table entries: 32000
IPv6 routing table entries: 16000
Flexible NetFlow entries: 64000
VLAN IDs: 4000
Switched virtual interfaces (SVIs): 2000
MAC Address Table Size
32000 entries
Jumbo Frame Support
9198 bytes
Routing Protocol
OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, MSDP, policy-based routing (PBR), RIPng
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Encryption Algorithm
128-bit AES
Features
DHCP support, trunking, Syslog support, full duplex mode, Stateful switchover (SSO), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Non-Stop Routing (NSR), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), Multicast Source Discovery Protocol (MSDP), 802.1x authentication, 16MB packet buffer, FTP client, MACsec support, 3 fans, Control plane protection (CoPP), Virtual Extensible LAN (VXLAN), Application Visibility and Control (AVC), Source-Specific Multicast (SSM), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Ethernet over MPLS (EoMPLS), Hierarchical Virtual Private LAN Service (H-VPLS), Private VLAN, Layer 3 VPN (L3VPN) support, Encapsulated Remote SPAN (ERSPAN), Security Group Tag (SGT) caching, Security Group Access Control List (SGACL), IT Service Management (IT
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
RAM
8 GB
Flash Memory
16 GB
Status Indicators
Status
Interfaces
48 x Gigabit LAN SFP uplink
1 x USB 2.0
Expansion Slots
1 (total) / 1 (free) x Expansion Slot
Power Device
Internal power supply - hot-plug
Installed Qty
1 (installed) / 2 (max)
Power Redundancy
Optional
Power Provided
715 Watt
Voltage Required
AC 120/230 V (50 - 60 Hz)
MTBF
281,920 hours
Compliant Standards
CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, EN 300 386, TVCN 7317, VCCI V-3/2009 Class A, CAN/CSA-C22.2 No. 60950-1
OS Required
Cisco IOS Universal
Width
44.4 cm
Depth
48.8 cm
Height
4.3 cm
Weight
7.86 kg
Service & Support
Limited warranty - replacement - lifetime - response time: next business day
Technical support - consulting - 90 days
Min Operating Temperature
-5 °C
Max Operating Temperature
45 °C
Humidity Range Operating
5 - 90% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
5 - 90% (non-condensing)
