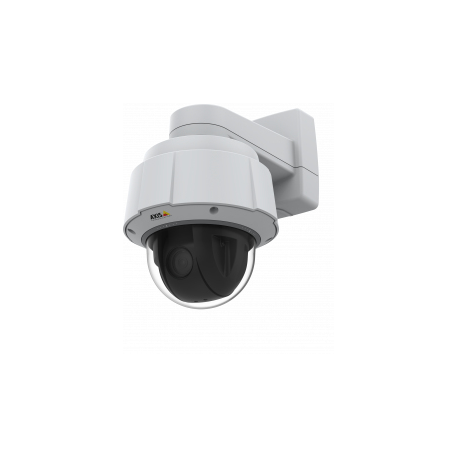

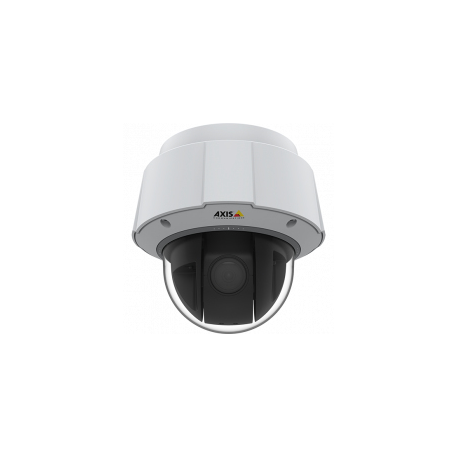

AXIS Q6074-E 50 Hz - Network surveillance camera - PTZ - outdoor - colour (Day&Night) - 1280 x 720 - 720/50p - auto iris - LAN 10/100 - MPEG-4, MJPEG, H.264 - High PoE
AXIS Q6074-E 50 Hz - Network surveillance camera - PTZ - outdoor - colour (Day&Night) - 1280 x 720 - 720/50p - auto iris - LAN 10/100 - MPEG-4, MJPEG, H.264 - High PoE
Manufacturer
•AXIS
Reference
•01973-002
Article
•1723141
Intrastat
•84716070
Shipping weight
•3.75 kg
Total quantity in stocks
•3
Nearest delivery
•30.03.2026
Type
IP security camera
Placement supported
Indoor & outdoor
Connectivity technology
Wired
PTZ control (Pan/Tilt/Zoom)
Y
Tour recording
Y
Preset points
Y
Wide Dynamic Range (WDR)
Y
Day/night mode
Y
Infrared (IR) cut-off filter
Y
Number of languages
11
Languages support
Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian
Certification
EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 55024, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KCC KN32 Class A, KN35, IEC/EN/UL 60950-1, EN 50121-4, IEC 62236-4, IEC/EN/UL 60950-22, IEC/EN/UL 62368–1,IEC/EN 60529 IP66/IP67, NEMA TS 2 (Subsection 2.2.7-2.2.9), IEC 62262 IK10, ISO 4892-2, EN 50121-4, IEC 62236-4, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-60, IEC 60068-2-78, NEMA 250 Type 4X, NIST SP500-267, EN 60950-1, GS, UL, cUL, CE, FCC, VCCI, CB, KCC, UL-AR
Form factor
Dome
Mounting type
Ceiling/Wall
Product colour
Black,White
Housing material
Aluminium,Polycarbonate
International Protection (IP) code
IP66, IP67
IK code
IK10
Fog proof
Y
Camera pan control
Y
Camera tilt control
Y
Minimum illumination
0.002 lx
Viewing angle, horizontal
63.8°
Viewing angle, vertical
38°
Tilt angle range
0 - 220°
Tilt speed
450 °/sec
Pan range
0 - 360°
Pan speed
450 °/sec
Camera shutter speed
1/11000 - 1/3 s
Sensor type
CMOS
Number of sensors
1
Optical sensor size
25.4 / 2.8 mm (1 / 2.8")
Progressive scan
Y
Number of lenses
1
Zoom capability
Y
Optical zoom
30x
Digital zoom
12x
Auto focus
Y
Maximum aperture number
4.2
Minimum aperture number
1.6
Focal length range (f-f)
4.25 - 127.5 mm
Maximum resolution
1280 x 720 pixels
Video compression formats
AVC,H.264,H.265,HEVC,M-JPEG,MPEG4
Supported graphics resolutions
320 x 180,1280 x 720 (HD 720)
Supported video modes
720p
Frame rate
60 fps
Video streaming
Y
Image quality adjustment
Brightness, Color depth, Sharpness
Privacy masking
Y
Text caption overlay
Y
Bit rate control
Variable Bit Rate (VBR)
Back Light Compensation (BLC)
Y
Ethernet LAN
Y
Ethernet interface type
Fast Ethernet
Networking standards
IEEE 802.1x,IEEE 802.3at
Supported network protocols
IPv4, IPv6 USGv6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, NTCIP, LLDP
Quality of Service (QoS) support
Y
Streaming method
Multicast
Card reader integrated
Y
Compatible memory cards
SD,SDHC,SDXC
Flash memory
512 MB
Internal memory
1024 MB
Ethernet LAN (RJ-45) ports
1
Password protection
Y
Video motion detection
Y
IP address filtering
Y
HTTPS encryption
Y
Alert notification type
E-mail
Intelligent Video Surveillance (IVS) system features
Missing object,Tripwire
Power source type
AC,PoE
AC input voltage
100-240 V
Power consumption (typical)
14 W
Power consumption (max)
51 W
Storage temperature (T-T)
-40 - 65 °C
Operating relative humidity (H-H)
10 - 100%
Width
232 mm
Depth
232 mm
Height
269 mm
Weight
3.75 kg
Number of cameras
1
Sun shield included
Y
