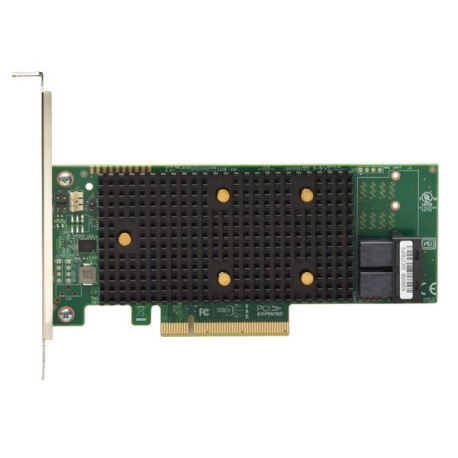

Lenovo ThinkSystem 430-8i - Storage controller - 8 Channel - SATA / SAS 12Gb / s - low profile - PCIe 3.0 x8 - for ThinkAgile MX3330-F Appliance; MX3330-H Appliance; MX3331-F Certified Node
Lenovo ThinkSystem 430-8i - Storage controller - 8 Channel - SATA / SAS 12Gb / s - low profile - PCIe 3.0 x8 - for ThinkAgile MX3330-F Appliance; MX3330-H Appliance; MX3331-F Certified Node
Manufacturer
•LENOVO
Reference
•7Y37A01088
Article
•2829109
Device Type
Storage controller - plug-in card - low profile
Host Bus
PCIe 3.0 x8
Interface
SATA / SAS 12Gb/s
Data Transfer Rate
12 Gbit/s
Supported Devices
Hard drive, solid state drive
Channel Qty
8
Max Storage Devices Qty
8
Processor
LSI LSISAS3408
Interfaces
2 x SAS 12Gb/s - 4 x Mini SAS HD (SFF-8643) (internal)
Features
DDF compliant Configuration on Disk (COD), Cyclical Redundancy Check (CRC), S.M.A.R.T. support
Compliant Standards
EN55022, EN55024, ICES-003 Class B, RoHS, WEEE, FCC Part 15 A, VCCI V-3, AS/NZS CISPR 22, CNS 13438, FCC CFR47 Part 15 B Class B, IEC/EN/UL 60950
OS Required
SuSE Linux Enterprise Server 11 for x86/AMD64/Intel EM64T, Red Hat Linux Enterprise Server 6 x64 Edition, Microsoft Windows Server 2012 R2, Red Hat Enterprise Linux 7, SUSE LINUX Enterprise Server 11 with Xen for AMD64/EM64T, SuSE Linux Enterprise Server 12, VMware vSphere 6.0 (ESXi), SuSE Linux Enterprise Server 12 with Xen, Microsoft Windows Server 2016, VMware vSphere 6.5 (ESXi)
Service & Support
Limited warranty - 1 year
Min Operating Temperature
0 °C
Max Operating Temperature
55 °C
Humidity Range Operating
20 - 90% (non-condensing)
Designed For
Lenovo ThinkAgile HX1330 Appliance 7Z85 ¦ Lenovo ThinkAgile HX1331 Certified Node 7D52 ¦ Lenovo ThinkAgile HX2330 Appliance 7Z85 ¦ Lenovo ThinkAgile HX2331 Certified Node 7D52 ¦ Lenovo ThinkAgile HX7530 Appliance 7Z82 ¦ Lenovo ThinkAgile HX7531 Certified Node 7Z84 ¦ Lenovo ThinkAgile MX3330-F Appliance 7D19 ¦ Lenovo ThinkAgile MX3330-H Appliance 7D19 ¦ Lenovo ThinkAgile MX3331-F Certified Node 7D67 ¦ Lenovo ThinkAgile MX3331-H Certified Node 7D67 ¦ Lenovo ThinkAgile MX3530-H Hybrid Appliance 7D6B ¦ Lenovo ThinkAgile MX3531-H Hybrid Certified Node 7D66 ¦ Lenovo ThinkAgile VX 1U Certified Node 7Y93 ¦ Lenovo ThinkAgile VX 2U Certified Node 7Y94 ¦ Lenovo ThinkAgile VX Certified Node 7Y94 ¦ Lenovo ThinkAgile VX2320 Appliance 7Y93 ¦ Lenovo ThinkAgile VX2330 Appliance 7Z62 ¦ Lenovo ThinkAgile VX3330 Appliance 7Z62 ¦ Lenovo ThinkAgile VX3331 7Z62 ¦ Lenovo ThinkAgile VX3530-G Appliance 7Z63 ¦ Lenovo ThinkAgile VX5530 Appliance 7Z63 ¦ Lenovo ThinkAgile VX7520 Appliance 7Y94 ¦ Lenovo ThinkAgile VX7530 Appliance 7Z63 ¦ L
