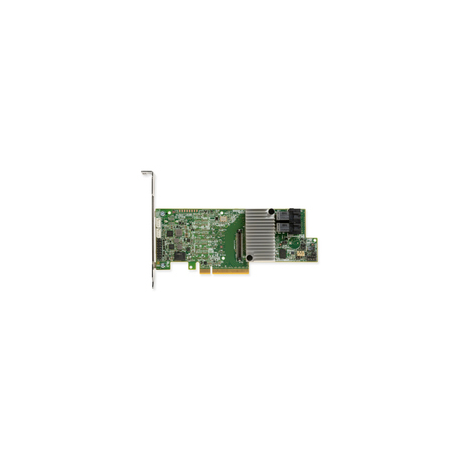

Lenovo ThinkSystem 730-8i - Storage controller (RAID) - 8 Channel - SATA / SAS 12Gb / s - low profile - RAID 0, 1, 5, 6, 10, 50, JBOD, 60 - PCIe 3.0 x8 - for ThinkSystem SR530; SR550; SR570; SR590; SR630; SR650; SR850; SR860; SR950; ST250; ST550
Lenovo ThinkSystem 730-8i - Storage controller (RAID) - 8 Channel - SATA / SAS 12Gb / s - low profile - RAID 0, 1, 5, 6, 10, 50, JBOD, 60 - PCIe 3.0 x8 - for ThinkSystem SR530; SR550; SR570; SR590; SR630; SR650; SR850; SR860; SR950; ST250; ST550
Manufacturer
•LENOVO
Reference
•4Y37A09722
Article
•1578719
Shipping weight
•0.910562 kg
Device Type
Storage controller (RAID) - plug-in card - low profile
Host Bus
PCIe 3.0 x8
Interface
SATA / SAS 12Gb/s
Data Transfer Rate
12 Gbit/s
Buffer Size
2 GB
Supported Devices
Hard drive, disk array (RAID), solid state drive
Channel Qty
8
Max Storage Devices Qty
8
RAID Level
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60
Processor
LSI LSISAS3108
Interfaces
2 x SAS 12Gb/s - 4 x Mini SAS HD (SFF-8643) (internal)
Features
Online Capacity Expansion (OCE), Online RAID Level Migration (RLM), CacheVault flash cache protection, Disk Data Format (DDF) support, S.M.A.R.T. support, Self-Encrypting Drive (SED) support, FastPath, SafeStore
Compliant Standards
EN55022, EN55024, ICES-003 Class B, RoHS, WEEE, VCCI V-3, AS/NZS CISPR 22, CNS 13438, FCC CFR47 Part 15 B Class B, IEC/EN/UL 60950, FCC CFR47 Part 15 C Class A
OS Required
SuSE Linux Enterprise Server 11 SP4, Microsoft Windows Server 2016, SuSE Linux Enterprise Server 12 SP3, Red Hat Enterprise Linux 7.3, Red Hat Enterprise Linux 6.9, VMware vSphere 6.5 (ESXi), SuSE Linux Enterprise Server 12 SP2, Red Hat Enterprise Linux 7.4, VMware vSphere 6.0 (ESXi) Update 3, Microsoft Windows Server 2008 / 2012 R2, SuSE Linux Enterprise Server 11 SP4 with Xen, SuSE Linux Enterprise Server 12 SP2 with Xen, SuSE Linux Enterprise Server 12 SP3 with Xen, Red Hat Enterprise Linux 7.5, VMware vSphere 6.5 (ESXi) Update 2, VMware vSphere 6.7 (ESXi), Microsoft Windows Server 2019, Red Hat Enterprise Linux 6.10, SUSE Linux Enterprise Server 15, SUSE Linux Enterprise Server 15 with Xen, VMware vSphere 6.5 (ESXi) Update 1, VMware vSphere 6.7 (ESXi) Update 1
Service & Support
Limited warranty - 1 year
Min Operating Temperature
10 °C
Max Operating Temperature
55 °C
Humidity Range Operating
20 - 90% (non-condensing)
Designed For
Lenovo ThinkSystem SR530 7X07, 7X08 ¦ Lenovo ThinkSystem SR550 7X03, 7X04 ¦ Lenovo ThinkSystem SR570 7Y02, 7Y03, 7Y04 ¦ Lenovo ThinkSystem SR590 7X98, 7X99 ¦ Lenovo ThinkSystem SR630 7X01, 7X02 ¦ Lenovo ThinkSystem SR650 7X05, 7X06 ¦ Lenovo ThinkSystem SR850 7X18, 7X19 ¦ Lenovo ThinkSystem SR860 7X69, 7X70 ¦ Lenovo ThinkSystem SR950 7X11, 7X12, 7X13 ¦ Lenovo ThinkSystem ST250 7Y45 ¦ Lenovo ThinkSystem ST550 7X09, 7X10
