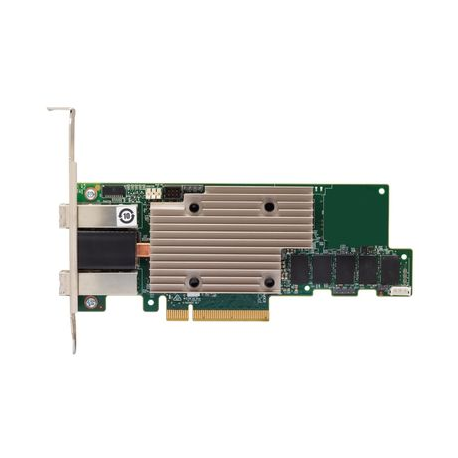

Lenovo ThinkSystem 930-8e - Storage controller (RAID) - 8 Channel - SATA / SAS 12Gb / s - RAID 0, 1, 5, 6, 10, 50, JBOD, 60 - PCIe 3.0 x8 - for ThinkSystem SR250; SR645; SR650 V2; SR665; SR670 V2; SR850 V2; ST250; ST50; ST650 V2
Lenovo ThinkSystem 930-8e - Storage controller (RAID) - 8 Channel - SATA / SAS 12Gb / s - RAID 0, 1, 5, 6, 10, 50, JBOD, 60 - PCIe 3.0 x8 - for ThinkSystem SR250; SR645; SR650 V2; SR665; SR670 V2; SR850 V2; ST250; ST50; ST650 V2
Manufacturer
•LENOVO
Reference
•7Y37A01087
Article
•1689611
Shipping weight
•0.37 kg
Device Type
Storage controller (RAID) - plug-in card
Host Bus
PCIe 3.0 x8
Interface
SATA / SAS 12Gb/s
Data Transfer Rate
12 Gbit/s
Supported Devices
Disk array (RAID)
Channel Qty
8
Max Storage Devices Qty
64
RAID Level
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60
Processor
LSI LSISAS3516
Interfaces
2 x SAS 12Gb/s - 4 x Mini SAS HD (SFF-8644) (internal)
Features
CacheVault flash cache protection, FastPath, SafeStore
Compliant Standards
EN55022, EN55024, ICES-003 Class B, RoHS, WEEE, FCC Part 15 A, VCCI V-3, AS/NZS CISPR 22, CNS 13438, FCC CFR47 Part 15 B Class B, IEC/EN/UL 60950
OS Required
SuSE Linux Enterprise Server 11 for x86/AMD64/Intel EM64T, Red Hat Linux Enterprise Server 6 x64 Edition, Microsoft Windows Server 2012 R2, Red Hat Enterprise Linux 7, SUSE LINUX Enterprise Server 11 with Xen for AMD64/EM64T, SuSE Linux Enterprise Server 12, VMware vSphere 6.0 (ESXi), SuSE Linux Enterprise Server 12 with Xen, Microsoft Windows Server 2016, VMware vSphere 6.5 (ESXi)
Service & Support
Limited warranty - 1 year
Min Operating Temperature
0 °C
Max Operating Temperature
55 °C
Humidity Range Operating
20 - 90% (non-condensing)
Designed For
Lenovo ThinkSystem SR250 ¦ Lenovo ThinkSystem SR530 ¦ Lenovo ThinkSystem SR550 ¦ Lenovo ThinkSystem SR570 ¦ Lenovo ThinkSystem SR590 ¦ Lenovo ThinkSystem SR630 ¦ Lenovo ThinkSystem SR645 7D2X ¦ Lenovo ThinkSystem SR650 ¦ Lenovo ThinkSystem SR650 V2 7Z73 ¦ Lenovo ThinkSystem SR665 7D2V, 7D2W ¦ Lenovo ThinkSystem SR670 V2 7Z23 ¦ Lenovo ThinkSystem SR850 ¦ Lenovo ThinkSystem SR850 V2 7D32 ¦ Lenovo ThinkSystem SR860 ¦ Lenovo ThinkSystem SR950 ¦ Lenovo ThinkSystem ST250 ¦ Lenovo ThinkSystem ST50 ¦ Lenovo ThinkSystem ST550 ¦ Lenovo ThinkSystem ST650 V2 7Z74, 7Z75
