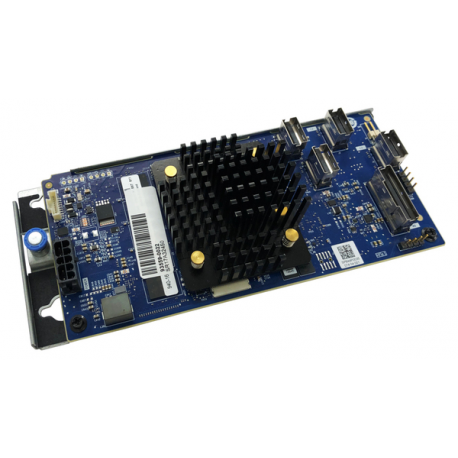

Lenovo ThinkSystem 940-16i - Storage controller (RAID) - 16 Channel - SATA / SAS 12Gb / s - low profile - RAID 0, 1, 5, 6, 10, 50, JBOD, 60 - PCIe 4.0 x8 - for ThinkSystem SR630 V2; SR645; SR650 V2; SR665; SR850 V2; SR860 V2; ST650 V2
Lenovo ThinkSystem 940-16i - Storage controller (RAID) - 16 Channel - SATA / SAS 12Gb / s - low profile - RAID 0, 1, 5, 6, 10, 50, JBOD, 60 - PCIe 4.0 x8 - for ThinkSystem SR630 V2; SR645; SR650 V2; SR665; SR850 V2; SR860 V2; ST650 V2
Manufacturer
•LENOVO
Reference
•4Y37A09730
Article
•2825825
Device Type
Storage controller (RAID) - plug-in card - low profile
Host Bus
PCIe 4.0 x8
Interface
SATA / SAS 12Gb/s
Data Transfer Rate
12 Gbit/s
Buffer Size
8 GB
Supported Devices
Hard drive, disk array (RAID), solid state drive
Channel Qty
16
Max Storage Devices Qty
16
RAID Level
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60
Processor
Broadcom SAS3916
Interfaces
2 x SAS 12Gb/s - Slim SAS (SFF-8654) (internal)
Features
Online Capacity Expansion (OCE), Online RAID Level Migration (RLM), SecureBoot, CacheVault flash cache protection, S.M.A.R.T. support, Self-Encrypting Drive (SED) support, FastPath, SafeStore, consistency check, fast initialisation, Patrol Read
Compliant Standards
EN55022, EN55024, ICES-003 Class B, RoHS, WEEE, FCC CFR47 Part 15 B, VCCI V-3, AS/NZS CISPR 22, CNS 13438, IEC/UL 60950
OS Required
Microsoft Windows Server 2016, Microsoft Windows Server 2019, VMware ESXi 6.7 update 3, Red Hat Enterprise Linux 7.6, SUSE Linux Enterprise Server 15 SP1, Red Hat Enterprise Linux 8.1, SUSE Linux Enterprise Server 12 SP5, VMware ESXi 7.0, SUSE Linux Enterprise Server 12 SP5 with Xen, SUSE Linux Enterprise Server 15 SP1 with Xen
Service & Support
Limited warranty - 1 year
Min Operating Temperature
10 °C
Max Operating Temperature
55 °C
Humidity Range Operating
20 - 80% (non-condensing)
Designed For
Lenovo ThinkSystem SR630 V2 7Z71 ¦ Lenovo ThinkSystem SR645 7D2X, 7D2Y ¦ Lenovo ThinkSystem SR650 V2 7D15, 7Z73 ¦ Lenovo ThinkSystem SR665 7D2V, 7D2W ¦ Lenovo ThinkSystem SR850 V2 7D32 ¦ Lenovo ThinkSystem SR860 V2 7Z60 ¦ Lenovo ThinkSystem ST650 V2 7Z74, 7Z75
