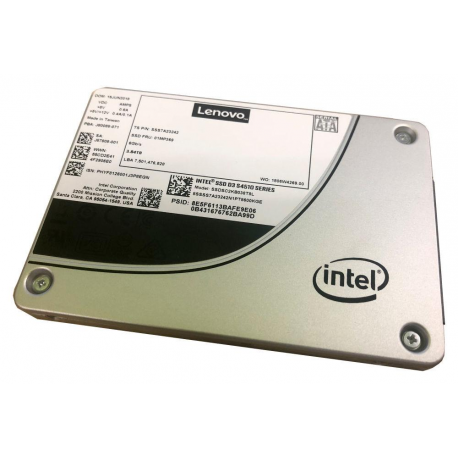

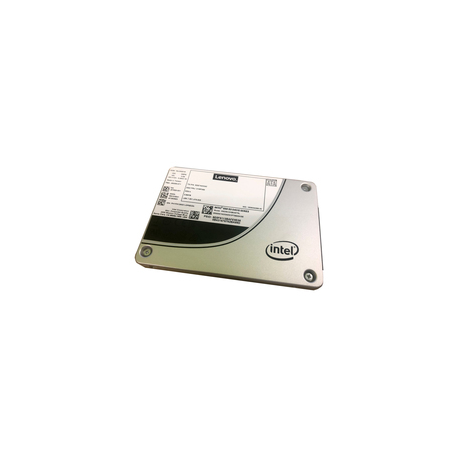

Intel S4510 Entry - SSD - encrypted - 240 GB - hot-swap - 2.5" - SATA 6Gb / s - 256-bit AES - for ThinkAgile VX3330 Appliance; VX3530-G Appliance; VX7530 Appliance; VX75XX Certified Node
Intel S4510 Entry - SSD - encrypted - 240 GB - hot-swap - 2.5" - SATA 6Gb / s - 256-bit AES - for ThinkAgile VX3330 Appliance; VX3530-G Appliance; VX7530 Appliance; VX75XX Certified Node
Manufacturer
•IBM
Reference
•4XB7A10247
Article
•1552438
Intrastat
•84717050
Shipping weight
•0.434 kg
Device Type
Solid state drive - hot-swap
Capacity
240 GB
Hardware Encryption
Yes
Encryption Algorithm
256-bit AES
NAND Flash Memory Type
3D triple-level cell (TLC)
Form Factor
2.5"
Interface
SATA 6Gb/s
Features
Enhanced Power Loss Data Protection, Thermal throttling, End-to-end data path protection, End-to-end data protection, 3D NAND Technology, Standard Endurance Technology (SET), S.M.A.R.T.
Weight
63 g
Drive Writes Per Day (DWPD)
2.1
SSD Endurance
900 TB
Drive Transfer Rate
600 MBps (external)
Internal Data Rate
560 MBps (read) / 290 MBps (write)
4KB Random Read
85000 IOPS
4KB Random Write
17000 IOPS
Average Latency
36 µs
MTBF
2,000,000 hours
Non-Recoverable Errors
1 per 10^17
Interfaces
1 x SATA 6 Gb/s
Compatible Bay
2.5"
Power Consumption
2.4 Watt (typical)
Included Accessories
Hot-plug tray
Compliant Standards
BSMI CNS 13438, EN 60950-1 Second Edition, RoHS 2011/65/EU, LVD 2006/95/EC, EN55022:2006, WEEE 2002/96/EC, EN55024:1998, CAN/CSA-CEI/IEC CISPR 22:02, FCC CFR47 Part 15 B Class B, AS/NZS 3584, UL/CSA60950-1 (2nd Edition), KCC Article 11.1
Shipping Width
17.4 cm
Shipping Depth
13.3 cm
Shipping Height
6.3 cm
Shipping Weight
434 g
Service & Support
Limited warranty - replacement - 1 year
Min Operating Temperature
0 °C
Max Operating Temperature
70 °C
Humidity Range Operating
5 - 95% (non-condensing)
Shock Tolerance (operating)
1000 g @ 0.5 ms
Vibration Tolerance (operating)
2.17 g @ 5-700 Hz
Vibration Tolerance (non-operating)
3.13 g @ 5-800 Hz
Designed For
Lenovo ThinkAgile VX 1SE Certified Node 7Z58 (2.5") ¦ Lenovo ThinkAgile VX1320 Appliance 7Z58 (2.5") ¦ Lenovo ThinkAgile VX3330 Appliance 7Z62 (2.5") ¦ Lenovo ThinkAgile VX3331 7Z62 (2.5") ¦ Lenovo ThinkAgile VX3530-G Appliance 7Z63 (2.5") ¦ Lenovo ThinkAgile VX3575-G Integrated System 7D43 (2.5") ¦ Lenovo ThinkAgile VX5575 Integrated System 7D43 (2.5") ¦ Lenovo ThinkAgile VX7530 Appliance 7Z63 (2.5") ¦ Lenovo ThinkAgile VX7531 Certified Node 7Z63 (2.5") ¦ Lenovo ThinkAgile VX7575 Integrated System 7D43 (2.5") ¦ Lenovo ThinkAgile VX7576 Certified Node 7D43 (2.5") ¦ Lenovo ThinkSystem SD530 (2.5") ¦ Lenovo ThinkSystem SN550 (2.5") ¦ Lenovo ThinkSystem SN850 (2.5") ¦ Lenovo ThinkSystem SR250 (2.5") ¦ Lenovo ThinkSystem SR530 (2.5") ¦ Lenovo ThinkSystem SR550 (2.5") ¦ Lenovo ThinkSystem SR570 (2.5") ¦ Lenovo ThinkSystem SR590 (2.5") ¦ Lenovo ThinkSystem SR630 (2.5") ¦ Lenovo ThinkSystem SR630 V2 7Z71 (2.5") ¦ Lenovo ThinkSystem SR645 7D2X (2.5") ¦ Lenovo ThinkSystem SR650 (2.5") ¦ Lenovo ThinkSystem SR650 V2 7D1
