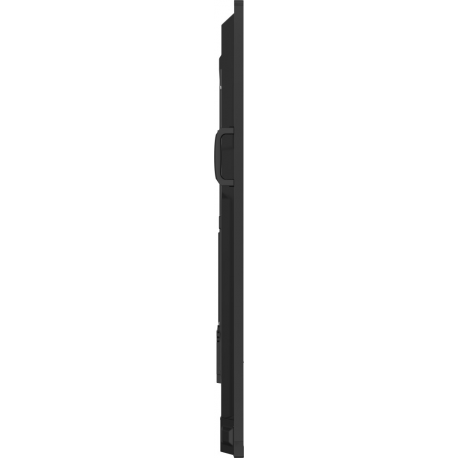

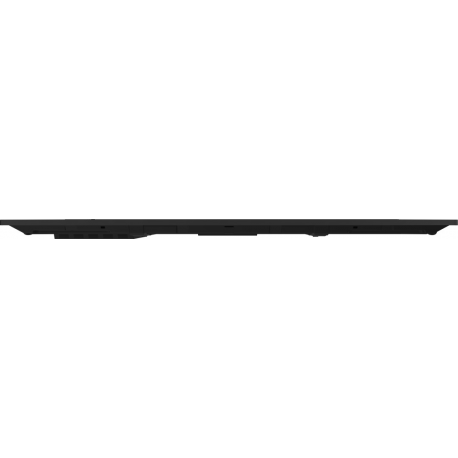

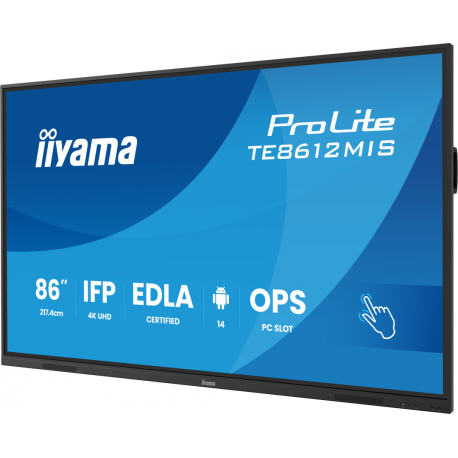

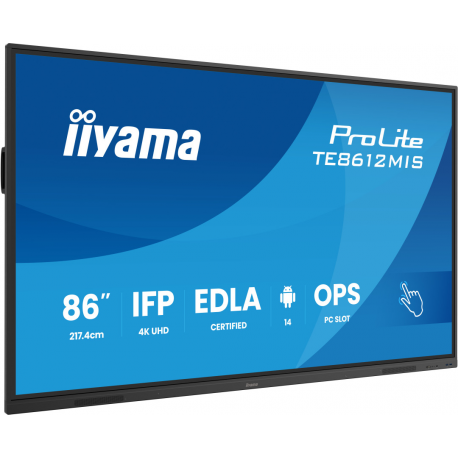

iiyama ProLite TE8612MIS-B4AG - 86" Diagonal Class (85.6" viewable) LED-backlit LCD display - interactive digital signage - with touchscreen (multi touch) / optional slot-in PC capability - 4K UHD (2160p) 3840 x 2160 - Direct LED - black (bezel), matte finish - with iiyama WiFi module (OWM002)
iiyama ProLite TE8612MIS-B4AG - 86" Diagonal Class (85.6" viewable) LED-backlit LCD display - interactive digital signage - with touchscreen (multi touch) / optional slot-in PC capability - 4K UHD (2160p) 3840 x 2160 - Direct LED - black (bezel), matte finish - with iiyama WiFi module (OWM002)
Ražotājs
•IIYAMA
Ražotāja kods
•TE8612MIS-B4AG
Artikuls
•4353812
Intrastat
•85286980
Pakas svars
•48.5 kg
Kopā pieejams (gab.)
•1
Tuvākā piegāde
•17.03.2026
Product Type
LED-backlit LCD flat panel display
Energy Class
Class G
Power Consumption Operational
181 Watt
Power Consumption SDR (On mode)
181 kWh/1000h
Diagonal Class
86"
Diagonal Size
85.6"
Commercial Use
Yes - interactive digital signage
Bundled with
Iiyama WiFi module (OWM002)
Combined With
Touchscreen (multi touch) / optional slot-in PC capability
Operating System
Android OS 14
TV Tuner
No tuner
TV Tuner Presence
No
Sensors
Light sensor, remote sensor
Video Interface
HDMI
HDMI Ports Qty
2 ports
PC Interface
DisplayPort, HDMI, VGA (HD-15), USB-C 3.2
Modes
Landscape mode, kiosk mode
Design
Metal frame
Cooling System
Fanless
Dimensions
Without stand
Width
195.7 cm
Depth
9.8 cm
Height
109.8 cm
Weight
48.5 kg
Enclosure Colour
Black (bezel), matte finish
LCD Display Technology
IPS
Pixel Pitch
0.493 mm
Colour Support
1070000000 colours
Resolution
3840 x 2160
Display Format
4K UHD (2160p)
Image Aspect Ratio
16:9
Frame Rate & Enhancement Technology
60 Hz Refresh Rate
LCD Backlight Technology
Direct LED
Coating
Anti-glare, 3 mm glass, 7H Hard
Image Contrast Ratio
1200:1
Dynamic Contrast Ratio
4000:1
Brightness
400 cd/m²
Viewing Angle
178 degrees
Viewing Angle (Vertical)
178 degrees
Touchpoints Qty
40
Response Time
6.5 ms
Display Menu Language
English, German, French, Spanish, Italian, Russian, Czech, Dutch, Polish, Slovenian, Finnish, Danish
Operation Hours / Days
24 / 7
Features
Integrated iiWare 13E software, PureTouch-IR technology, iiyama Device management System (DMS), 10-bit (8-bit + FRC), Frame Rate Control (FRC), MTBF 50000 hours, blue light reduction, zero air-gap, 92% light transmittance, +/- 1.5mm touch accuracy, Open Pluggable Specification slot, LAN Control, OSD key lock, 24/7 operation time

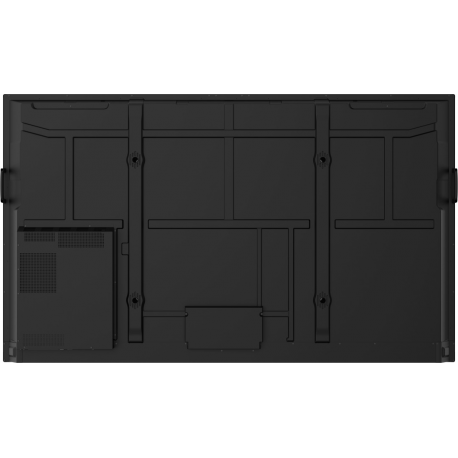

Flat Panel Mount Interface
800 x 600 mm
VESA Compatibility
Yes
Supported Memory Cards
microSD
USB Port
Yes
Configuration
Rockchip RK3576 - 8 GB - 128 GB - Mali-G52 MC3
Type
Remote control
Battery Included
Yes
Speaker System
2 speakers
Output Power / Total
32 Watt
Speakers
2 x main channel speaker - 16 Watt
Functionality
Digital video playback, cloud storage playback, Internet video playback, WEB browsing
Connectivity
LAN, Wi-Fi, Bluetooth
LAN Protocol
Gigabit Ethernet
Wi-Fi Protocol
802.11a, 802.11b, 802.11g, 802.11n, 802.11ac, 802.11ax
Bluetooth Version
Bluetooth 5.0
Connect & Share
Iiyama Share, EShare
Connector Type
2 x HDMI input
DisplayPort input
USB-C 3.2 Gen 1 with DisplayPort 1.2, touchscreen, 65W Power Delivery - front
USB-C 2.0 with 15W Power Delivery - rear
VGA input
Audio input
RS-232C input
LAN input
Infrared input
HDMI output
SPDIF output
Audio output
2 x USB 3.2 Gen 1 - front
USB 3.2 Gen 1 - side
2 x LAN
2 x USB 2.0
Included Accessories

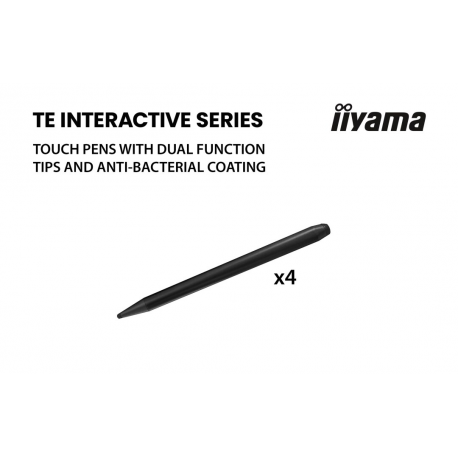

4 touch pens, Mounting bracket for NUC, Mounting bracket for webcam

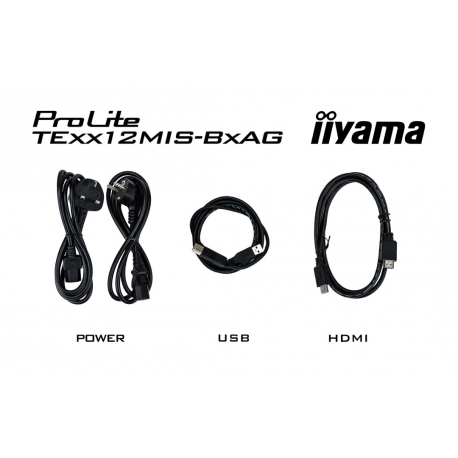

Cables Included
HDMI cable
USB cable
Compliant Standards
Google EDLA, Plug and Play, REACH SvHC, CB, TUV Bauart, EAC, RoHS, ERP, WEEE, REACH, DDC-2B, HDCP 2.1, HDCP 2.2
Power Device
Power supply
Input Voltage
AC 100-240 V (50/60 Hz)
Power Consumption Stand by
0.5 Watt
Power Consumption (Off Mode)
0.3 Watt
Service & Support
Limited warranty - 5 years
Width (Shipping)
211 cm
Depth (Shipping)
22.5 cm
Height (Shipping)
129.1 cm
Weight (Shipping)
64.5 kg
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
