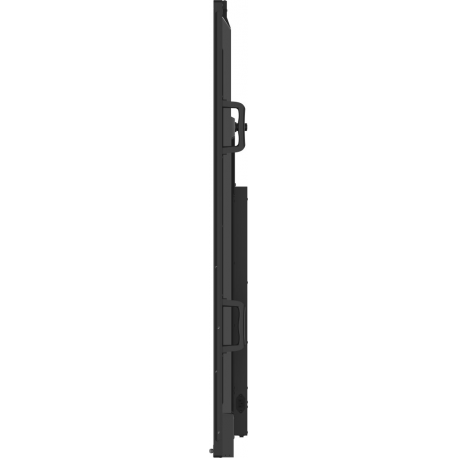

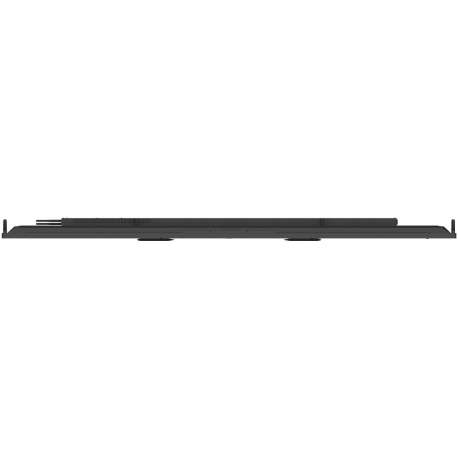

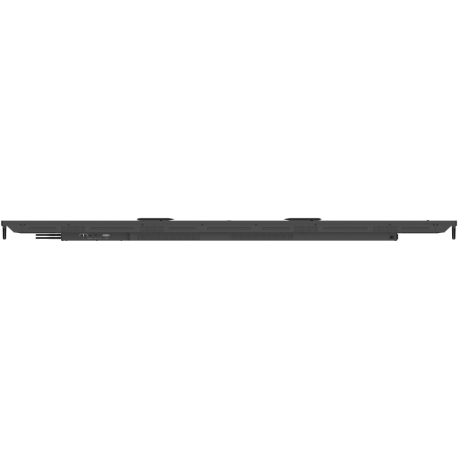

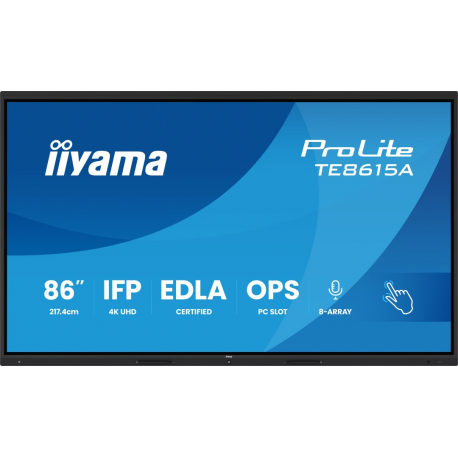

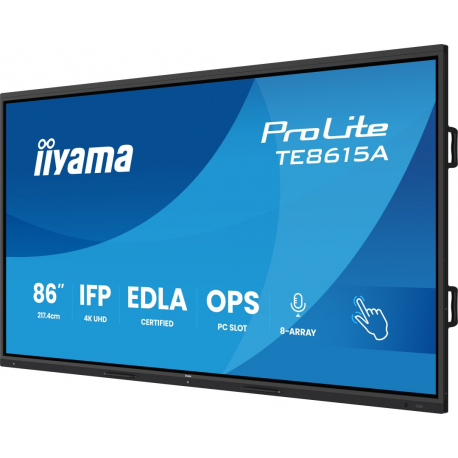

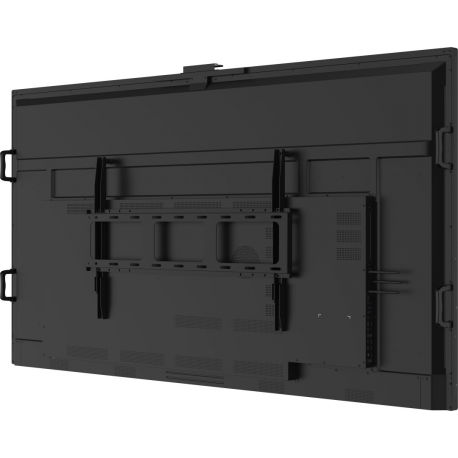

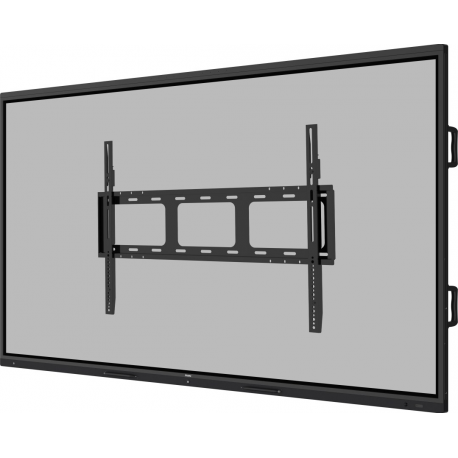

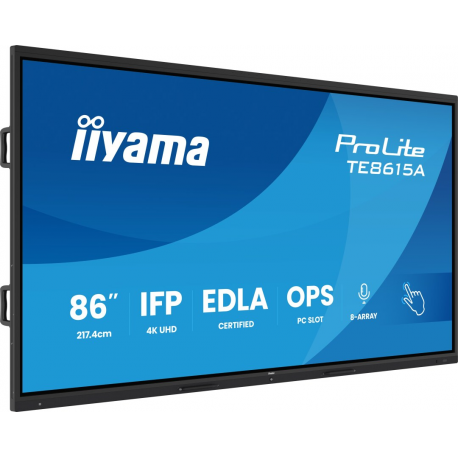

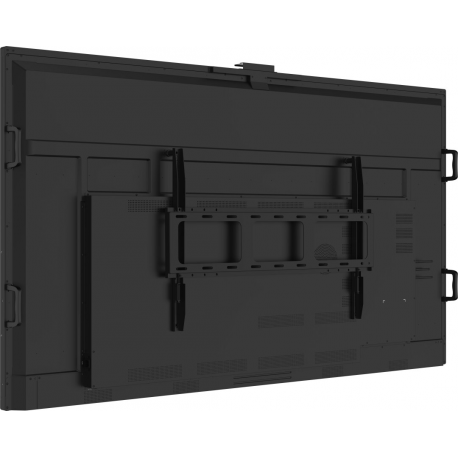

iiyama ProLite TE8615A-B1AG - 86" Diagonal Class (85.6" viewable) LED-backlit LCD display - interactive digital signage - with touchscreen (multi touch) / 8-microphone array / optional slot-in PC capability - 4K UHD (2160p) 3840 x 2160 - black (bezel), matte finish - with iiyama WiFi module (OWM002)
iiyama ProLite TE8615A-B1AG - 86" Diagonal Class (85.6" viewable) LED-backlit LCD display - interactive digital signage - with touchscreen (multi touch) / 8-microphone array / optional slot-in PC capability - 4K UHD (2160p) 3840 x 2160 - black (bezel), matte finish - with iiyama WiFi module (OWM002)
Ražotājs
•IIYAMA
Ražotāja kods
•TE8615A-B1AG
Artikuls
•4455859
Intrastat
•85286980
Pakas svars
•68 kg
Kopā pieejams (gab.)
•2
Tuvākā piegāde
•17.03.2026
Product Type
LED-backlit LCD flat panel display
Energy Class
Class G
Power Consumption Operational
300 Watt
Power Consumption SDR (On mode)
300 kWh/1000h
Diagonal Class
86"
Diagonal Size
85.6"
Commercial Use
Yes - interactive digital signage
Bundled with
Iiyama WiFi module (OWM002)
Combined With
Touchscreen (multi touch) / 8-microphone array / optional slot-in PC capability
Operating System
Android OS 14
TV Tuner
No tuner
TV Tuner Presence
No
Sensors
Ambient light sensor (ALS), PIR motion sensor, stylus pen pickup sensor
Video Interface
HDMI
HDMI Ports Qty
2 ports
PC Interface
DisplayPort, HDMI, USB-C 3.2
Modes
Landscape mode
Picture Enhancements
72% Colour Gamut NTSC
Design
Metal frame
Cooling System
Fanless
Dimensions
Without stand
Width
195.56 cm
Depth
8.71 cm
Height
117.43 cm
Weight
68 kg
Enclosure Colour
Black (bezel), matte finish
LCD Display Technology
IPS
Pixel Pitch
0.493 mm
Colour Support
1070000000 colours
Resolution
3840 x 2160
Display Format
4K UHD (2160p)
Image Aspect Ratio
16:9
Frame Rate & Enhancement Technology
60 Hz Refresh Rate
LCD Backlight Technology
LED backlight
Coating
Anti-glare, anti-gloss treatment, anti-bacterial coating, optical bond, 7H Hard, 3.2 mm glass
Image Contrast Ratio
1200:1
Brightness
550 cd/m²
Viewing Angle
178 degrees
Viewing Angle (Vertical)
178 degrees
Touchpoints Qty
40
Response Time
8 ms
Display Menu Language
English, German, French, Spanish, Italian, Russian, Czech, Dutch, Polish, Slovenian, Finnish, Danish
Features
DeepContrast-IR+ Touch technology, iiyama Device management System (DMS), +/- 1mm touch accuracy, Palm Rejection, optical bonding, 10-bit (8-bit + Hi-FRC), 88% light transmittance, integrated iiWare 21E software, OSD key lock, Iiyama iiControl preinstalled, Open Pluggable Specification slot, picture-in-picture (PIP), blue light reduction, Flicker free technology, MTBF 50000 hours

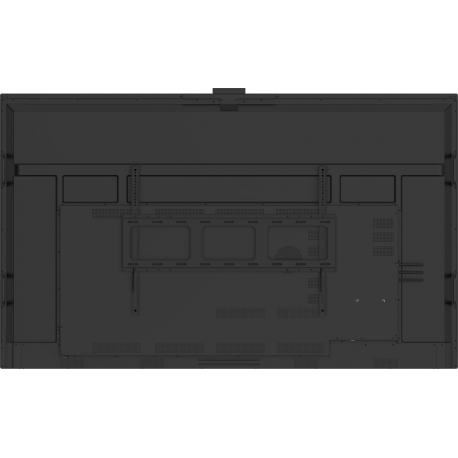

Flat Panel Mount Interface
800 x 600 mm
VESA Compatibility
Yes
Supported Memory Cards
microSD
USB Port
Yes
Configuration
Rockchip RK3576 - 16 GB - 128 GB - Mali-G52 MC3
Type
Remote control
Battery Included
Yes
Speaker System
2 speakers, subwoofer
Output Power / Total
40 Watt
Features
Built-in 8-array microphone
Speakers
2 x main channel speaker - 20 Watt ¦ 1 x subwoofer - 20 Watt
Functionality
Digital video playback, cloud storage playback, Internet video playback, WEB browsing
Connectivity
LAN, Wi-Fi, Bluetooth
LAN Protocol
Gigabit Ethernet
Wi-Fi Protocol
802.11a, 802.11b, 802.11g, 802.11n, 802.11ac, 802.11ax
Bluetooth Version
Bluetooth 5.0
Connect & Share
EShare
Connector Type

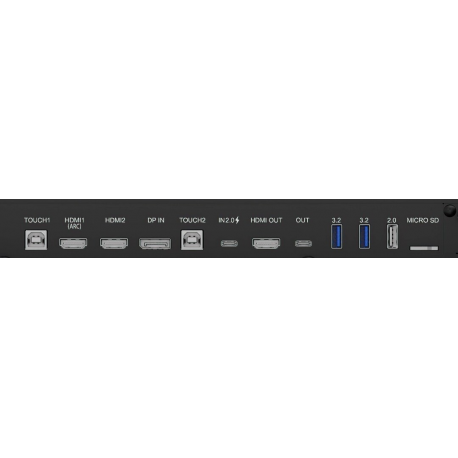

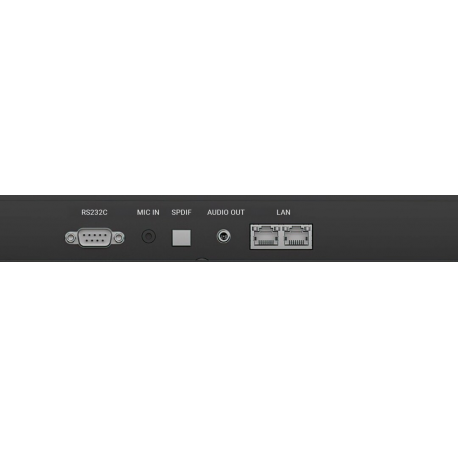

2 x HDMI input ¦ DisplayPort input ¦ USB-C 3.2 Gen 1 with DisplayPort 1.2, data, touch, 100W Power Delivery ¦ HDMI output ¦ USB-C 3.2 Gen 1 with DisplayPort 1.2 ¦ Audio input ¦ RS-232C input ¦ SPDIF output ¦ Audio output ¦ LAN input ¦ LAN output ¦ 2 x USB 3.2 Gen 1 - front ¦ USB 3.2 Gen 1 ¦ USB 2.0
Included Accessories

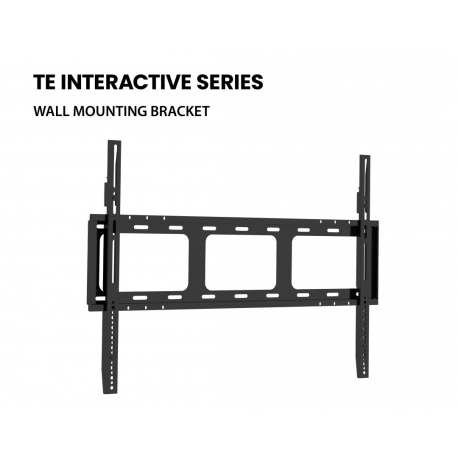

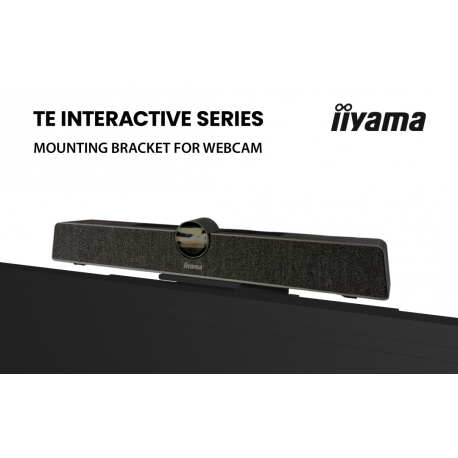

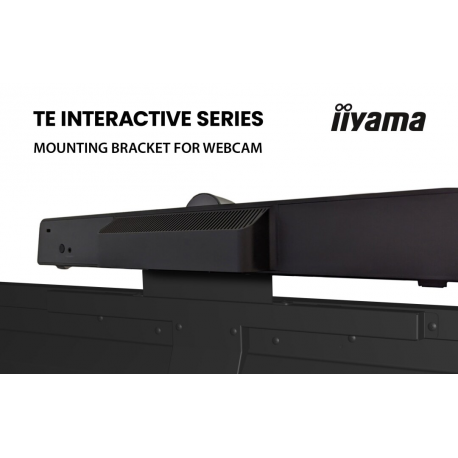

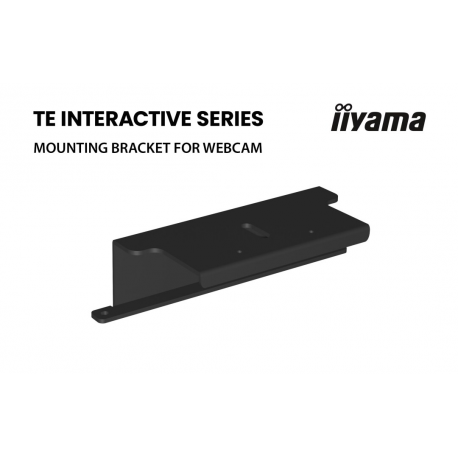

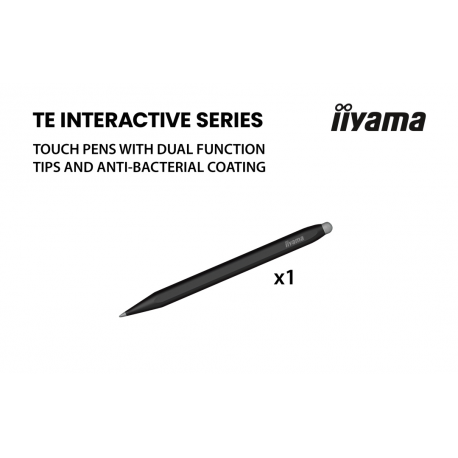

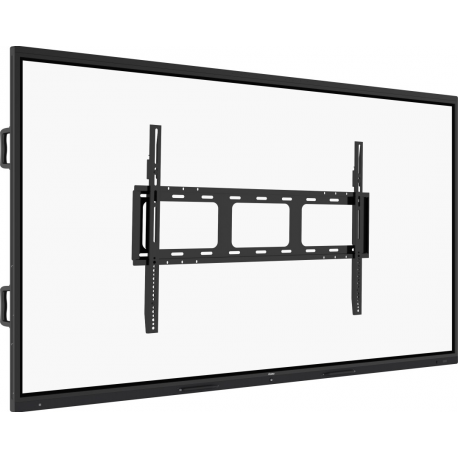

4 touch pens, Wall Mounting Bracket (VESA 800x600), webcam mounting bracket

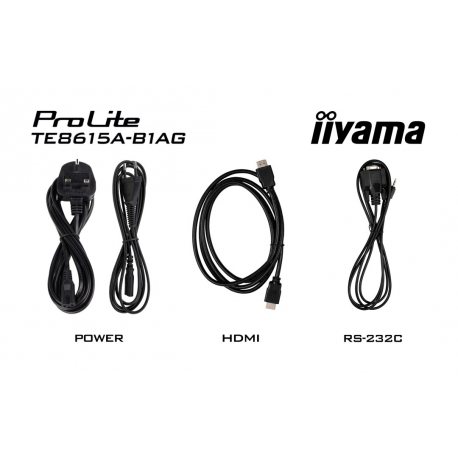

Cables Included
HDMI cable - 3 m ¦ USB cable - 3 m
Compliant Standards
Google EDLA, Plug and Play, DDC-2B, CB, TUV Bauart, EAC, RoHS, ERP, WEEE, REACH, REACH SvHC, HDCP 2.2
EPEAT Compliant
EPEAT Bronze
Power Device
Power supply
Input Voltage
AC 100-240 V (50/60 Hz)
Power Consumption Stand by
0.5 Watt
Power Consumption (Off Mode)
0.3 Watt
Service & Support
Limited warranty - 5 years
Width (Shipping)
209.5 cm
Depth (Shipping)
18.5 cm
Height (Shipping)
126.5 cm
Weight (Shipping)
82.7 kg
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 90% (non-condensing)
