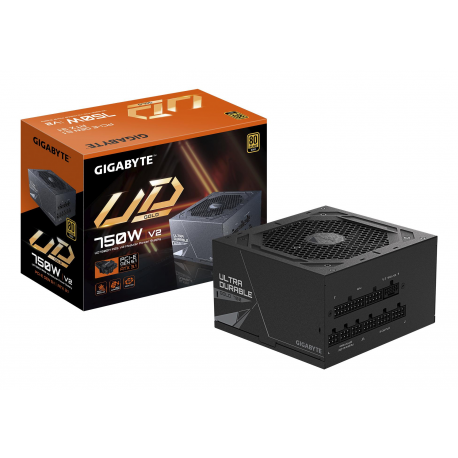

Gigabyte UD750GM PG5 V2 - Power supply (internal) - ATX12V 3.1 / EPS12V - 80 PLUS Gold - AC 100-240 V - 750 Watt - active PFC
Gigabyte UD750GM PG5 V2 - Power supply (internal) - ATX12V 3.1 / EPS12V - 80 PLUS Gold - AC 100-240 V - 750 Watt - active PFC
Ražotājs
•GIGABYTE
Ražotāja kods
•GP-UD750GM PG5 V2
Artikuls
•4393502
Intrastat
•85044090
Kopā pieejams (gab.)
•112
Tuvākā piegāde
•16.03.2026
Device Type
Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance
ATX12V 3.1/ EPS12V
PSU Form Factor
ATX
Input Voltage
AC 100-240 V
Frequency Required
50 - 60 Hz
Power Output Connectors Details
1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 1 x 16 pin PCI Express power ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 8 x 15 pin Serial ATA power ¦ 3 x 4 PIN internal power
Output Voltage
+3.3, +5, ±12 V, +5Vsb V
Power Capacity
750 Watt
Output Current
+3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 62.5 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A
Efficiency
90%
Power Factor (PF)
0.9
Modular Cable Management
Yes
80 PLUS Certification
80 PLUS Gold
Cables Included
AC power cable ¦ Power 24 pin ATX with detachable 4 pin section modular cable 61 cm ¦ Power 8 pin +12V with detachable 4 pin section modular cable 85 cm ¦ 16-pin PCIe 5.0 cable 70 cm ¦ 2 x 8 pin PCI Express power with detachable 2 pin section modular cable 75 cm ¦ 2 x power 15 pin SATA cable 105 cm ¦ 4 pin internal power cable ¦ Floppy adapter
MTBF
100,000 hours
Cooling System
120 mm fan
Features
Hydraulic bearing cooling fan, over voltage protection, overpower protection, short-circuit protection, undervoltage protection, over current protection, overheat protection, fully modular, Smart Fan Control Quiet technology
Compliant Standards
cRUus, CCC, FCC, EAC, TUV SUD, RoHS, ICC, RCM, UKCA
Width
15 cm
Depth
14 cm
Height
8.6 cm
