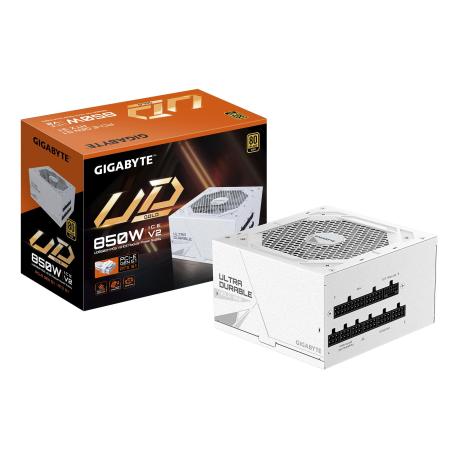

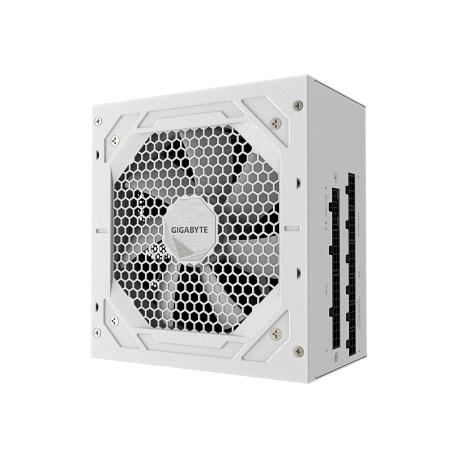

Gigabyte UD850GM PG5 V2 ICE - Power supply (internal) - ATX12V 3.1 / EPS12V - 80 PLUS Gold - AC 100-240 V - 850 Watt - active PFC
Gigabyte UD850GM PG5 V2 ICE - Power supply (internal) - ATX12V 3.1 / EPS12V - 80 PLUS Gold - AC 100-240 V - 850 Watt - active PFC
Ražotājs
•GIGABYTE
Ražotāja kods
•GP-UD850GM PG5 ICE
Artikuls
•4455810
Intrastat
•85044090
Pakas svars
•2.56 kg
Kopā pieejams (gab.)
•75
Tuvākā piegāde
•16.03.2026
Device Type
Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance
ATX12V 3.1/ EPS12V
PSU Form Factor
ATX
Input Voltage
AC 100-240 V
Frequency Required
50 - 60 Hz
Power Output Connectors Details
1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin +12V with detachable 4 pin section ¦ 1 x 16 pin PCI Express power ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 8 x 15 pin Serial ATA power ¦ 1 x 4 PIN mini-power connector ¦ 3 x 4 PIN internal power
Output Voltage
+3.3, +5, ±12 V, +5Vsb V
Power Capacity
850 Watt
Output Current
+3.3V - 25 A ¦ +5V - 25 A ¦ +12V - 70.8 A ¦ +5VSB - 3 A ¦ -12V - 0.3 A
Efficiency
90%
Power Factor (PF)
0.9
Modular Cable Management
Yes
80 PLUS Certification
80 PLUS Gold
Cables Included
AC power cable ¦ Power 24 pin ATX with detachable 4 pin section modular cable 85 cm ¦ Power 8 pin +12V with detachable 4 pin section modular cable 75 cm ¦ 16-pin 12VHPWR power cable 70 cm ¦ 2 x 8 pin PCI Express power with detachable 2 pin section modular cable 75 cm ¦ 2 x power 15 pin SATA cable ¦ 4 pin internal power cable ¦ Floppy cable
MTBF
100,000 hours
Cooling System
120 mm fan
Features
Over voltage protection, overpower protection, short-circuit protection, undervoltage protection, over current protection, overheat protection, fully modular, hydraulic bearing cooling fan, Zero RPM fan mode, single 12V rail
Compliant Standards
CCC, FCC, EAC, TUV, RoHS, C-Tick, UKCA, PCIe 5.1
Service & Support
Limited warranty - 10 years
Width
15 cm
Depth
14 cm
Height
8.6 cm
