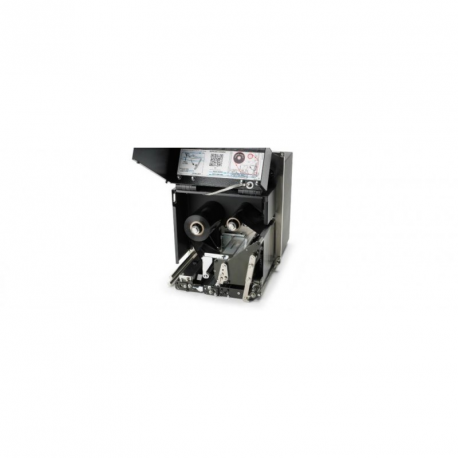

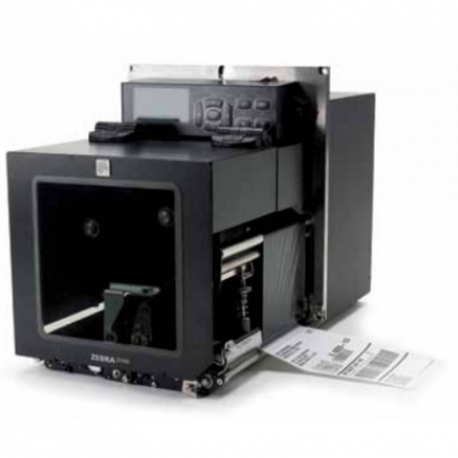

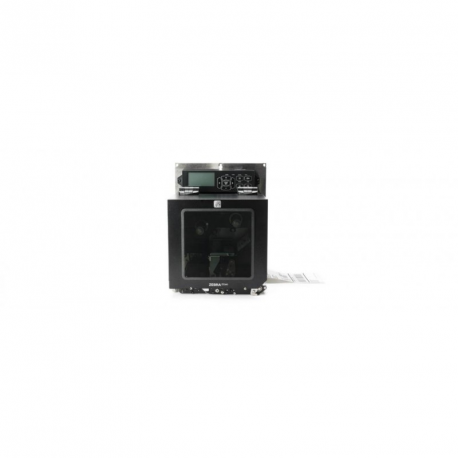

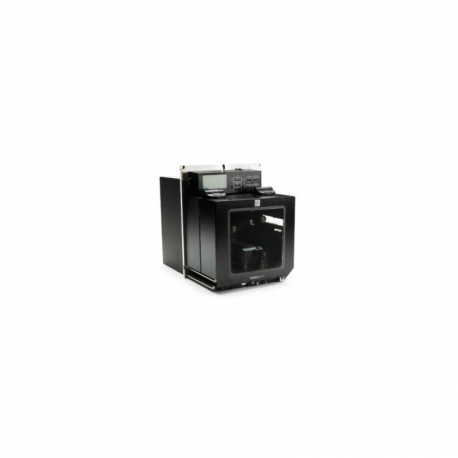

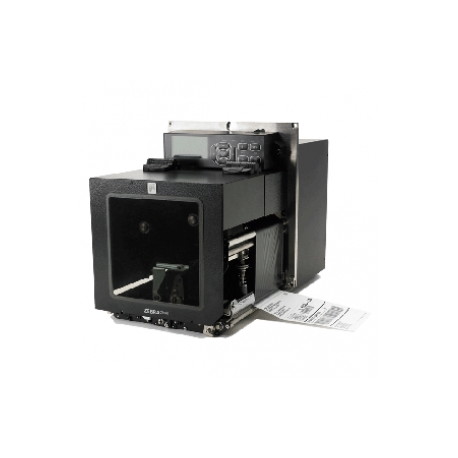

Zebra ZE500-6 - Label printer - direct thermal / thermal transfer - Roll (18 cm) - 203 dpi - up to 305 mm / sec - parallel, USB, LAN, serial
Zebra ZE500-6 - Label printer - direct thermal / thermal transfer - Roll (18 cm) - 203 dpi - up to 305 mm / sec - parallel, USB, LAN, serial
Ražotājs
•ZEBRA
Ražotāja kods
•ZE50062-R0E0000Z
Artikuls
•460929
Intrastat
•84433210
Pakas svars
•17.3 kg
Printer Type
Label printer - direct thermal / thermal transfer - monochrome
Print Speed
Up to 305 mm/sec - B/W - 203 dpi
Built-in Devices
Status LCD, Applicator Interface Port
Connectivity Technology
Wired
Interface
Parallel, USB, LAN, serial
Max Resolution (B&W)
203 dpi
Language Simulation
ZPL, ZPL II
Features
Realtime clock
Barcodes
Code 93, Industrial 2 of 5, Code 39, Code 49, CODABLOCK, ISBT 128, QR code, MaxiCode, Aztec code, LOGMARS, EAN/JAN-8, EAN/JAN-13, UPC-A, MicroPDF417, Codabar, Code 128, Code 11, Code 2 of 5, Interleaved 2 of 5, Postnet, PDF417, MSI-Plessey, Data Matrix, PLANET, TLC39
Printer Features
Right-hand orientation
Processor
133 MHz
RAM Installed (Max)
16 MB
Technology / Form Factor
SDRAM
Flash Memory
64 MB
Media Type
Continuous forms, die cut labels
Max Media Size
Roll (18 cm)
Min Media Size (Custom)
76 mm
Max Media Size (Custom)
180 mm x 991 mm
Media Sizes
Roll (18 cm)
Max Printing Width
168 mm
Max Printing Length
3810 mm
Media Thickness Range
0.076 mm - 0.305 mm
Roll Maximum Outer Diameter
101.6 mm
Roll Core Diameter
25.4 mm
Media Feeders
1 x manual - 1 roll - Roll (18 cm)
Networking
Print server
Network Controller Name
ZebraNet 10/100 Print Server
Connections
1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x LAN - RJ-45 ¦ 1 x USB 2.0 - 4 pin USB Type B ¦ 1 x parallel
Compatible with Windows 7
"Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7.
Compliant Standards
FCC Class A certified, VCCI, EN 60950, ICES-003, EN55022 Class A, UL 60950 Third Edition, CCC, FCC Part 15, EN 61000-6-2, CSA C22.2 No. 60950 Third Edition
Power Device
Power supply - internal
Voltage Required
AC 120/230 V
Frequency Required
50/60 Hz
Power Factor Correction
Yes
Software Included
Drivers & Utilities
OS Required
Microsoft Windows Server 2003, Microsoft Windows Vista / XP / 7, Microsoft Windows Server 2008
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
20 - 95% (non-condensing)
Width
24.5 cm
Depth
43.8 cm
Height
30 cm
Weight
17.3 kg
