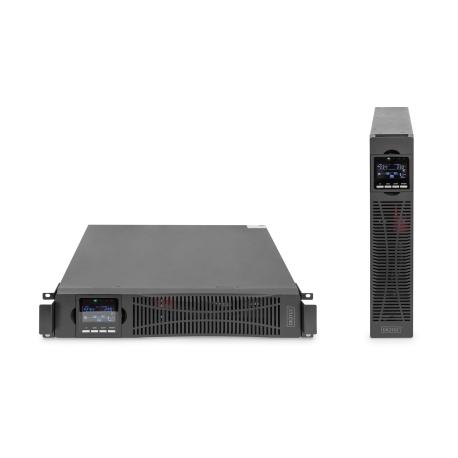

DIGITUS DN-170096 - UPS (rack-mountable / external) - AC 208/220/230/240 V - 3000 Watt - 3000 VA - 1-phase - 9 Ah - RS-232, USB - output connectors: 8 - 2U - 19"
DIGITUS DN-170096 - UPS (rack-mountable / external) - AC 208/220/230/240 V - 3000 Watt - 3000 VA - 1-phase - 9 Ah - RS-232, USB - output connectors: 8 - 2U - 19"
Ražotājs
•ASSMANN
Ražotāja kods
•DN-170096
Artikuls
•1915057
Intrastat
•84734080
Pakas svars
•31 kg
Kopā pieejams (gab.)
•2
Tuvākā piegāde
•16.03.2026
Device Type
UPS - rack-mountable / external
Height (Rack Units)
2U
Rack Size
19"
UPS Technology
On-line
Input Voltage
AC 208/220/230/240 V
Input Voltage Range
AC 110 - 290 V
Frequency Provided
50/60 Hz ± 0.1Hz
Input Wiring
1-phase
Frequency Required
40 - 70 Hz
Input Connectors
1
Power Output Connectors Details
8 x power IEC 60320 C13
1 x power IEC 60320 C19
Output Voltage
AC 208/220/230/240 V ± 1% - 50/60 Hz
Power Capacity
3000 Watt / 3000 VA
Dataline Surge Protection
Network - RJ-45 - 1 input line / 1 output line
Output Waveform
Sinewave
Surge Suppression
Yes
Efficiency
93% AC mode, 87% DC mode
Power Factor (PF)
1.0
Total Harmonic Distortion (THD)
5 %
Quantity
6
Voltage Provided
12 V
Capacity
9 Ah
Run Time (Up To)
1.5 min at full load
3 min at 75% load
9 min at half load
22 min at 25% load
Recharge Time
4 hours
Transfer Time
4 ms
Remote Management Interface
RS-232, USB
Remote Management Protocol
SNMP
Interfaces
1 x RS-232 - 9 pin D-Sub (DB-9)
1 x USB - 4 pin USB Type B
EPO (emergency power off)
Expansion Slots
1 (total) / 1 (free) x Expansion Slot
Rack Mounting Kit
Included
Features
Audible alarm, LCD display, overheat protection, internal bypass, overload protection, short-circuit protection, cooling fan, generator compatible, low battery alarm
Compliant Standards
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 62040-2, IEC 60950-1, EN 60950-1, EN 62040-2, IEC 62040-1, EN 62040-1
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 90% (non-condensing)
Sound Emission
55 dBA
Width
44 cm
Depth
60 cm
Height
8.65 cm
Weight
26 kg
Shipping Width
73.2 cm
Shipping Depth
55.5 cm
Shipping Height
20.2 cm
Shipping Weight
30.2 kg
