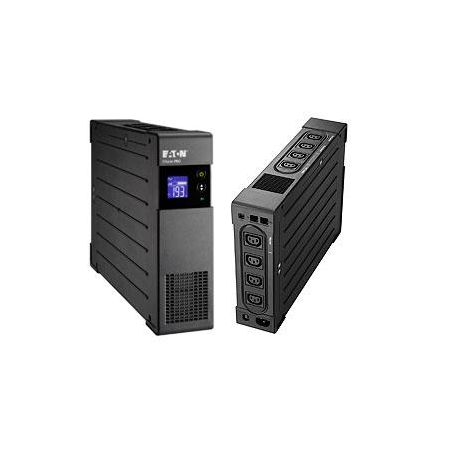

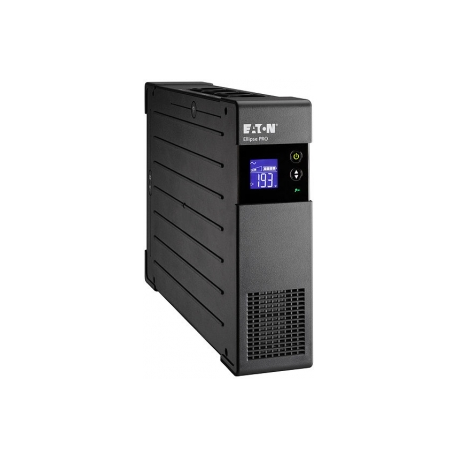

Eaton Ellipse PRO 1600 - UPS - AC 230 V - 1000 Watt - 1600 VA - 9 Ah - USB - output connectors: 8 - 2U - 19"
Eaton Ellipse PRO 1600 - UPS - AC 230 V - 1000 Watt - 1600 VA - 9 Ah - USB - output connectors: 8 - 2U - 19"
Ražotājs
•EATON
Ražotāja kods
•ELP1600IEC
Artikuls
•418971
Intrastat
•84734080
Pakas svars
•12.58 kg
Kopā pieejams (gab.)
•3
Tuvākā piegāde
•16.03.2026
Sch
Device Type
UPS - external
Height (Rack Units)
2U
Rack Size
19"
UPS Technology
Line interactive
Input Voltage
AC 230 V
Input Voltage Range
AC 165 - 285 V
Input Voltage Range (Adjustable)
AC 150 - 285 V
Frequency Provided
50/60 Hz
Frequency Required
50/60 Hz
Input Connectors
1 x power IEC 60320 C14
Power Output Connectors Details
4 x power IEC 60320 C13 (UPS and surge) ¦ 4 x power IEC 60320 C13 (surge)
Output Voltage
AC 220/230/240 V + 15% / - 20% - 50/60 Hz
Power Capacity
1000 Watt / 1600 VA
Dataline Surge Protection
Network/phone line - RJ-45/RJ-11 - 1 input line / 1 output line
Surge Suppression
Yes
Circuit Protection
Circuit breaker
Quantity
2
Technology
Lead Acid
Capacity
9 Ah
Run Time (Up To)
9 min at half load ¦ 5 min at 70% load
Remote Management Interface
USB
Interfaces
1 x management (USB) - 4 pin USB Type B
Cables Included
USB cable - external
Rack Mounting Kit
Optional
Features

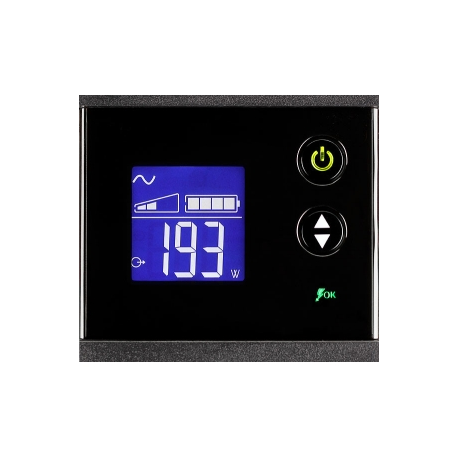

Wall mountable, LCD display, Automatic Voltage Regulation (AVR), deep discharge protection, cold-start function, EcoControl Master/Control outlets
Compliant Standards
CB, IEC 62040-1-1, IEC 62040-2, IEC 61643-1, EN 62040-1-1, EN 62040-2
Software Included
Eaton UPS Companion
Service & Support
Limited warranty - 3 years ¦ Limited warranty - batteries - 3 years
Min Operating Temperature
0 °C
Max Operating Temperature
35 °C
Humidity Range Operating
0 - 85%
Width
8.2 cm
Depth
39 cm
Height
27.5 cm
Weight
11.3 kg
