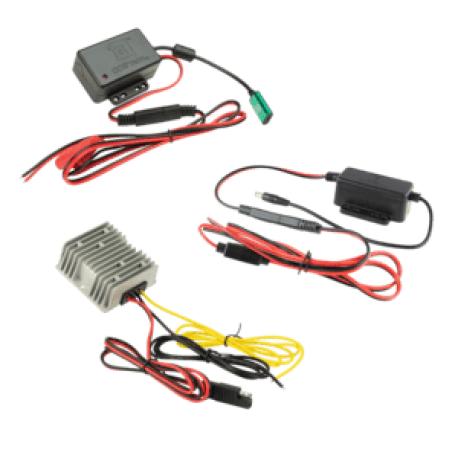

RAM GDS - Power converter / charger - 24-60V DC input (9V DC output) - 3.5 A (DC jack 5.5 x 2.5 mm)

RAM GDS - Power converter / charger - 24-60V DC input (9V DC output) - 3.5 A (DC jack 5.5 x 2.5 mm)

Ražotājs
RAM MOUNT
Ražotāja kods
RAM-GDS-CHARGE-V18U
Artikuls
3536613
Pakas svars
0.136 kg
Ražotāja cena
41.29 €
Kopā pieejams (gab.)
1
Tuvākā piegāde
23.03.2026
The GDS® Modular Hardwire Charger with 5.5mm Male DC cable is the ideal solution for providing power to any RAM® or GDS® DC powered docking station. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. This hardwire charger has an input of 24-60VDC input, 9VDC output making it ideal for forklift mounts and material handling applications. Product features - RAM-GDS-CHARGE-V18U: Input voltage: 24-60V DC Output voltage: 9V DC Output current: 3,5A max. Input connector: Male 5.5mm OD x 2.5mm ID Barrel Connector Input cable length: ca. 120 cm Output cable length: ca. 20 cm Operating temperature: -10°C - +70°C Storage temperature: -40°C - +70°C Integrated protection against overvoltage, short circuit & reverse polarity Certifications - FCC, IC, UKCA, CE, RCM, WEEE, E-Mark, RoHS, 18AWG, IP66 and SAE J-1113-5a

Visi piedāvājumi ir redzami pēc autorizēšanās.

Ražotājs
RAM MOUNT
Ražotāja kods
RAM-GDS-CHARGE-V18U
Artikuls
3536613
Pakas svars
0.136 kg
Ražotāja cena
41.29 €
Kopā pieejams (gab.)
1
Tuvākā piegāde
23.03.2026
The GDS® Modular Hardwire Charger with 5.5mm Male DC cable is the ideal solution for providing power to any RAM® or GDS® DC powered docking station. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. This hardwire charger has an input of 24-60VDC input, 9VDC output making it ideal for forklift mounts and material handling applications. Product features - RAM-GDS-CHARGE-V18U: Input voltage: 24-60V DC Output voltage: 9V DC Output current: 3,5A max. Input connector: Male 5.5mm OD x 2.5mm ID Barrel Connector Input cable length: ca. 120 cm Output cable length: ca. 20 cm Operating temperature: -10°C - +70°C Storage temperature: -40°C - +70°C Integrated protection against overvoltage, short circuit & reverse polarity Certifications - FCC, IC, UKCA, CE, RCM, WEEE, E-Mark, RoHS, 18AWG, IP66 and SAE J-1113-5a

Product Type
Power converter / charger
Weight
136 g
Voltage Required
DC 24 - 60 V
Input Connectors
2-pole flat marine connector
Input Connectors Qty
1
Voltage Provided
DC 9 V
Output connectors
Power DC jack 5.5 mm (ID: 2.5 mm)
Max Electric Current
3.5 A
Features
Short circuit protection, over voltage protection, moisture resistant, reversed polarity protection circuit
Packaging Type
Poly bag
Cables Included
Power DC jack cable - 20 cm ¦ Power cable - 1.2 m
Compliant Standards
RoHS, WEEE, SAE J1113-5, FCC, UKCA, IC, RCM
Service & Support
Limited warranty - 3 years
