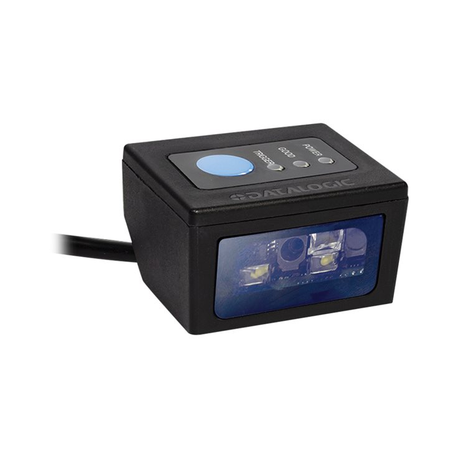

Datalogic DSM0422-WA Fixed Scan Module - Barcode scanner - desktop - decoded - USB
Datalogic DSM0422-WA Fixed Scan Module - Barcode scanner - desktop - decoded - USB
Ražotājs
•DATALOGIC
Ražotāja kods
•DSM0422-WA
Artikuls
•1686656
Intrastat
•84719000
Pakas svars
•0.131 kg
Kopā pieejams (gab.)
•14
Tuvākā piegāde
•23.03.2026
Type
Barcode scanner - desktop - stationary
Colour
Black
Interface Type
USB
Minimum Bar Width
3 mil
Scan Field Width
3 cm - 60 cm
Scan Element Type
Visible laser diode
Sensor Resolution
1280 x 960
Light Source Wave Length
650 nm
Scan Mode
Fixed projection
Skew (Degrees)
60
Pitch (Degrees)
60
Print Contrast Signal (PCS)
25%
Decode Capability
Pharmacode 39, EAN/JAN, Code 93, Matrix 2 of 5, Industrial 2 of 5, Code 39, IATA, QR code, MaxiCode, Aztec code, Telepen, BC 412, MicroPDF417, Codabar, Code 128, Code 11, Code 2 of 5, UPC, Interleaved 2 of 5, Postnet, PDF417, MSI-Plessey, Data Matrix, PLANET, Australian Post, British Post, China Post, Japanese Post, Kix (Netherlands) Post, Korea Post, Trioptic Code, MacroPDF417, Royal Mail, Micro QR code, CC-A, CC-B, CC-C, GS1 DataBar Omnidirectional, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded, GS1 DataBar Expanded Stacked, GS1 DataBar Limited, Standard 2 of 5, GS1 DataBar Composites, GS1 DataBar Stacked, China Han Xin Code, Intelligent Mail Barcode, EAN-128, RSS-14, Datalogic 2 of 5, UPC-A / E, UPC/EAN/JAN Composites
TTL Decoding
Decoded
Connectivity Technology
Wired
OK Notification
Beeper, LED indicator
Features
Image capturing, Green Spot technology, white LEDs illumination, maximum resolution down to 2 mils
Interfaces
USB
Compliant Standards
IP54, China RoHS, IEC 60825 Class 2, EU RoHS
Electric Current Required
55 mA (standby), 214 mA (operating), 5 mA (low power)
OS Required
Linux, Microsoft Windows, Android
Width
4.7 cm
Depth
2.7 cm
Height
3.8 cm
Weight
131 g
Service & Support
Limited warranty - 3 years
Min Operating Temperature
-20 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 95% (non-condensing)
Drop Specification
1 m to concrete
