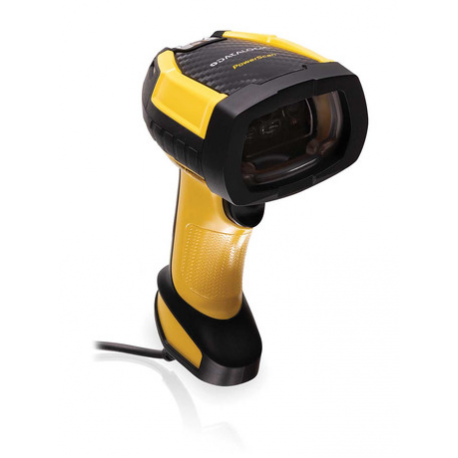

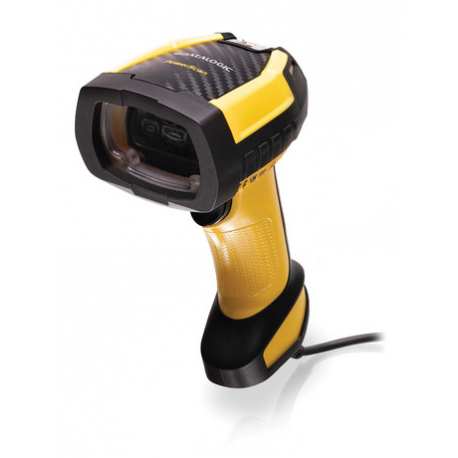

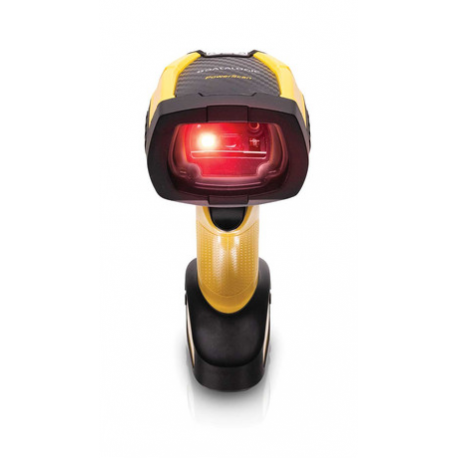

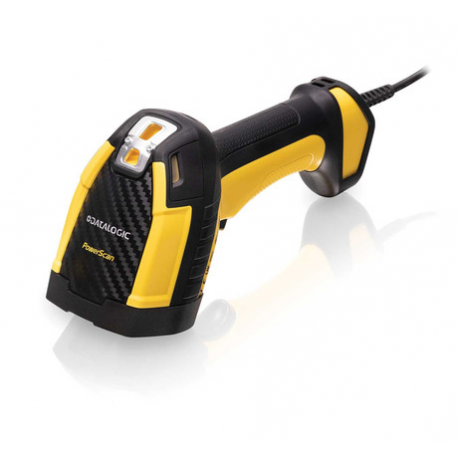

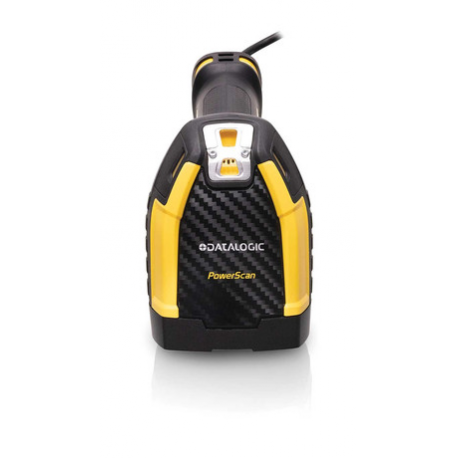

Datalogic PowerScan PD9630-DPX - RS-232 Kit - barcode scanner - handheld - 2D imager - decoded - RS-232
Datalogic PowerScan PD9630-DPX - RS-232 Kit - barcode scanner - handheld - 2D imager - decoded - RS-232
Ražotājs
•DATALOGIC
Ražotāja kods
•PD9630-DPXK2
Artikuls
•3342558
Intrastat
•84716070
Pakas svars
•0.3162 kg
Ražotāja cena
•1915.00 €
Handheld scanner, 2D, DPM, trigger, vibration, incl.: cable (RS232), protection class: IP65, IP67, colour: black, yellow
Type
Barcode scanner - handheld
Colour
Black
Interface Type
RS-232
Minimum Bar Width
2 mil
Scan Element Type
2D imager - white LED / red LED / blue LED
Sensor Resolution
1280 x 800
Scan Mode
Single-pass
Skew (Degrees)
52
Pitch (Degrees)
52
Print Contrast Signal (PCS)
15%
Decode Capability
GS1 DataBar, Aztec code, China Han Xin Code, Data Matrix, MaxiCode, Micro QR code, QR code, DotCode, Australian Post, China Post, Intelligent Mail Barcode, Japanese Post, Kix (Netherlands) Post, PLANET, Portuguese Post, Postnet, Royal Mail, Swedish Post, EAN/JAN, GS1 DataBar Composites, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MacroPDF417, MicroPDF417, PDF417, UPC A Composite, UPC E Composite
TTL Decoding
Decoded
Connectivity Technology
Wired
OK Notification
Beeper, LED indicator, vibration
Features
Direct Part Mark (DPM), triggered, 20 kV ESD protection (air discharge), Datalogic Three Green Lights (3GL), Green Spot technology, rugged
Interfaces
1 x RS-232
Cables Included
1 x RS-232 cable - external
Compliant Standards
IP67, IP65, China RoHS, EU RoHS, REACH, CDRH Class II, IEC 60825 Class 2, IEC 62471
Electric Current Required
470 mA (operating), 89 mA (standby), 41 mA (idle)
Software Included
Datalogic Aladdin, OPOS/JavaPOS Drivers
Width
7.9 cm
Depth
14 cm
Height
19 cm
Weight
316.2 g
Service & Support
Limited warranty - 3 years
Min Operating Temperature
-20 °C
Max Operating Temperature
50 °C
Humidity Range Operating
0 - 95% (non-condensing)
Drop Specification
2.5 m
