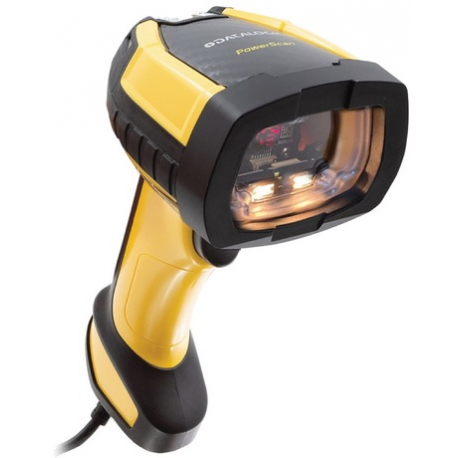

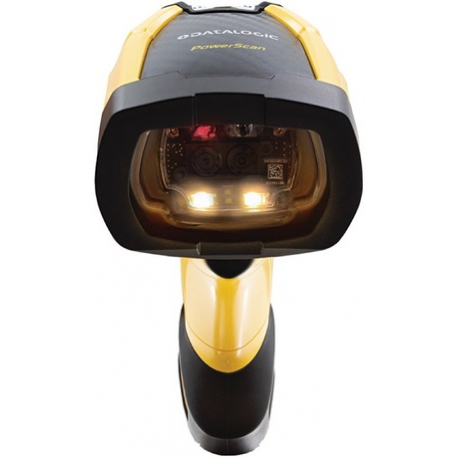

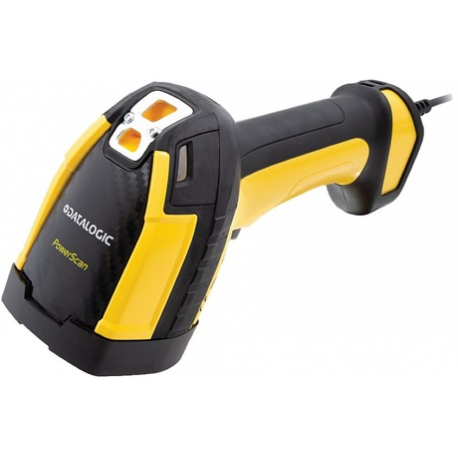

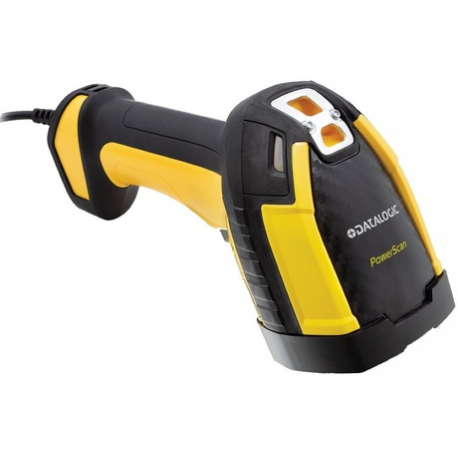

Datalogic PowerScan PD9630-HP - Barcode scanner - handheld - HP - decoded - RS-232, USB
Datalogic PowerScan PD9630-HP - Barcode scanner - handheld - HP - decoded - RS-232, USB
Ražotājs
•DATALOGIC
Ražotāja kods
•PD9630-HP
Artikuls
•1899365
Intrastat
•84716070
Pakas svars
•0.444 kg
Ražotāja cena
•559.00 €
Kopā pieejams (gab.)
•193
Tuvākā piegāde
•23.03.2026
Handheld scanner, 2D, imager (high performance), incl.: trigger, vibration, Digimarc, multi-interface (RS232, USB), IP65, IP67, order separately: interface cable
Type
Barcode scanner - handheld
Colour
Black, yellow
Interface Type
RS-232, USB
Minimum Bar Width
2.5 mil
Scan Engine Focus Range
High Perfomance (HP)
Scan Element Type
Visible laser diode - white LED
Sensor Resolution
1280 x 800
Light Source Wave Length
630-680 nm
Scan Mode
Single-pass
Max Working Distance
242.9 cm
Skew (Degrees)
52
Pitch (Degrees)
52
Print Contrast Signal (PCS)
15%
Decode Capability
EAN/JAN, Industrial 2 of 5, Code 39, ISBT 128, IATA, ISBN, GS1 DataBar, QR code, MaxiCode, Aztec code, Code 32, Code 39 Full ASCII, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Interleaved 2 of 5, Postnet, PDF417, MSI-Plessey, Data Matrix, PLANET, Australian Post, China Post, Japanese Post, Kix (Netherlands) Post, MacroPDF417, Royal Mail, Micro QR code, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, Swedish Post, Standard 2 of 5, GS1 DataBar Composites, GS1 DataBar Stacked, China Han Xin Code, Portuguese Post
TTL Decoding
Decoded
Connectivity Technology
Wired
OK Notification
Beeper, LED indicator
Features
Triggered, image capturing, rugged, Datalogic Three Green Lights (3GL)
Interfaces
1 x USB ¦ 1 x RS-232
Compliant Standards
FCC Class B certified, VCCI, BSMI, GOST, NOM, IEC 60950, UL 60950, CSA 22.2 No. 60950, ICES-003 Class B, EMC, FCC Part 15, IC, RoHS, Laser Class 2, KCC, REACH, EN 60825-1, IP65
Voltage
DC 5 V
Electric Current Required
280 mA (operating), 187 mA (standby)
Width
7.9 cm
Depth
14 cm
Height
19 cm
Weight
318 g
Service & Support
Limited warranty - 3 years
Min Operating Temperature
-20 °C
Max Operating Temperature
50 °C
Humidity Range Operating
0 - 95% (non-condensing)
Drop Specification
2 m
