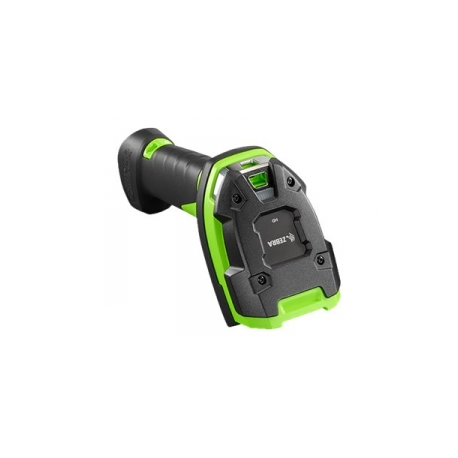

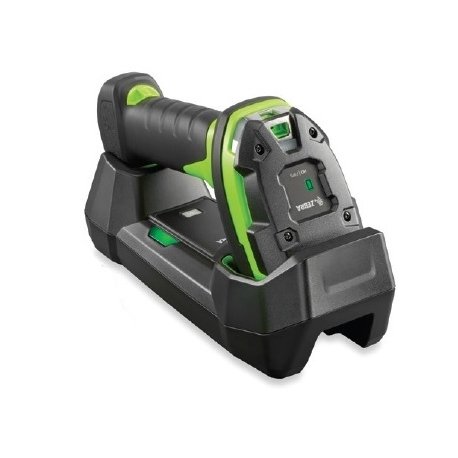

Zebra DS3608-DP - Barcode scanner - handheld - decoded
Zebra DS3608-DP - Barcode scanner - handheld - decoded
Ražotājs
•ZEBRA
Ražotāja kods
•DS3608-DP20003VZWW
Artikuls
•1354505
Intrastat
•84716070
Pakas svars
•0.309 kg
Kopā pieejams (gab.)
•63
Tuvākā piegāde
•23.03.2026
Type
Barcode scanner - handheld
Colour
Industrial green
Minimum Bar Width
3 mil
Sensor Resolution
1280 x 960
Max Working Distance
35 cm
Skew (Degrees)
60
Pitch (Degrees)
60
Print Contrast Signal (PCS)
15%
Decode Capability
Code 93, Industrial 2 of 5, Code 39, NW-7, GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, Code 3 of 5, Italy Pharmacode, Codabar, Code 128, Code 11, PDF417, MSI-Plessey, Data Matrix, TLC39, Micro QR code, China Han Xin Code, Direct Part Mark (DPM), UPC/EAN supplementals
TTL Decoding
Decoded
Connectivity Technology
Wired
OK Notification
Beeper, LED indicator, vibration
Features
Rugged
Compliant Standards
UL, VDE, EN 61000-6-2, RoHS, UL 60950-1 Second Edition, IP67, CAN/CSA C22.2 No. 60950-1-07, EN 61000-3-2:2006+A1:2009+A2:2009, IEC 60601-1-2:2007, EN 50581:2012, ICES-003 issue 5 Class B, IEC 62471:2006, EN 62471:2008, EN 60601-1-2:2007, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+AC:2011, EN 61000-3-3:2013, EN 55024:2010, EN 55022:2010/AC:2011, IEC 60950-1:2005 + A1:2009 + A2:2013, CU, FCC CFR47 Part 15 B Class B
Width
7.6 cm
Depth
13.2 cm
Height
18.5 cm
Weight
309 g
Service & Support
Limited warranty - 3 years
Min Operating Temperature
-30 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 95% (non-condensing)
Drop Specification
2.4 m to concrete
