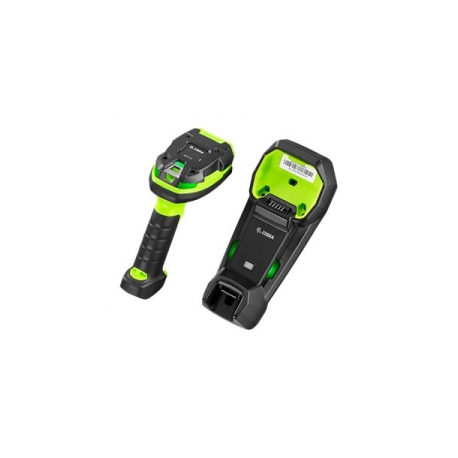

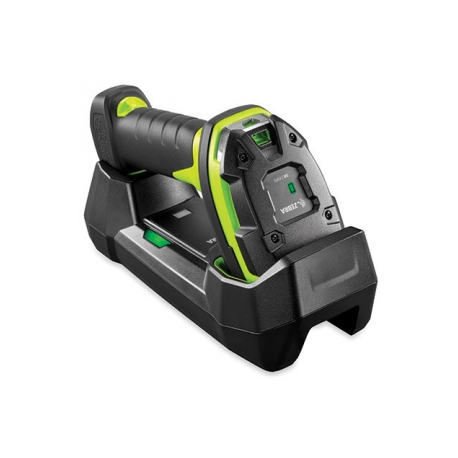

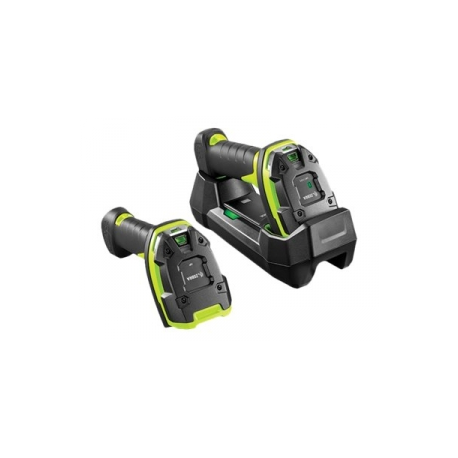

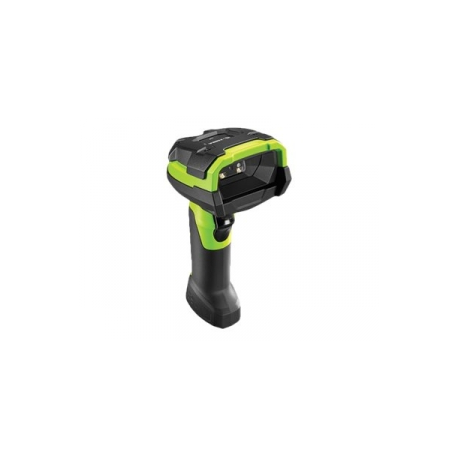

Zebra DS3678-HP - USB Kit - barcode scanner - portable - decoded - Bluetooth 4.0
Zebra DS3678-HP - USB Kit - barcode scanner - portable - decoded - Bluetooth 4.0
Ražotājs
•ZEBRA
Ražotāja kods
•DS3678-HP3U4210SFW
Artikuls
•1330994
Intrastat
•84716070
Pakas svars
•1.802 kg
Ražotāja cena
•1256.66 €
Bluetooth scanner, industry, 2D, imager (high performance), FIPS, incl.: cable (USB), power supply unit, power cable, charging/transmitter cradle, IP67
Type
Barcode scanner - portable
Colour
Industrial green
Interface Type
Bluetooth 4.0
Minimum Bar Width
5 mil
Sensor Resolution
1280 x 960
Max Working Distance
210 cm
Skew (Degrees)
60
Pitch (Degrees)
60
Print Contrast Signal (PCS)
15%
Decode Capability
Code 93, Code 39, NW-7, GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, Italy Pharmacode, Codabar, Code 128, Code 11, UPC, PDF417, MSI-Plessey, Data Matrix, TLC39, OCR-A, OCR-B, MICR E-13B, Micro QR code, China Han Xin Code
TTL Decoding
Decoded
Connectivity Technology
Wireless
OK Notification
Beeper, LED indicator, vibration
Features
Rugged
Wireless Connectivity
Bluetooth 4.0 LE
Interfaces
1 x USB - Type A
Included Accessories
Cradle
Cables Included
1 x USB cable - external
Compliant Standards
UL, VDE, Bluetooth Class 1, EN 61000-4-2, EN 61000-6-2, RoHS, UL 60950-1 Second Edition, IP67, CAN/CSA C22.2 No. 60950-1-07, IP65, EN 61000-3-2:2006+A1:2009+A2:2009, IEC 60601-1-2:2007, EN 50581:2012, ICES-003 issue 5 Class B, IEC 62471:2006, EN 62471:2008, EN 60601-1-2:2007, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+AC:2011, EN 61000-3-3:2013, EN 55024:2010, EN 55022:2010/AC:2011, IEC 60950-1:2005 + A1:2009 + A2:2013, CU, FCC CFR47 Part 15 B Class B
Power Device
Power adapter
Battery
1 x Lithium Ion
Width
7.6 cm
Depth
14.2 cm
Height
18.5 cm
Weight
411 g
Service & Support
Limited warranty - 3 years
Min Operating Temperature
-20 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 95%
Drop Specification
2.4 m to concrete
