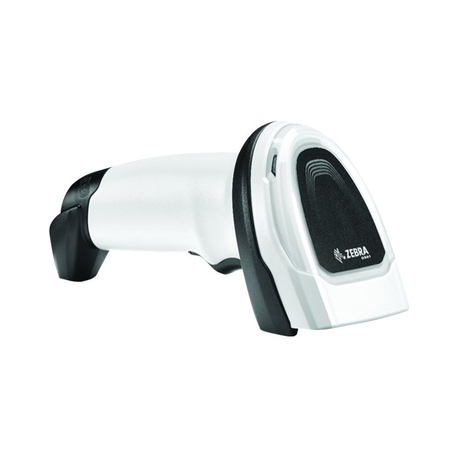

Zebra DS8108-DL - Barcode scanner - handheld - 2D imager - decoded - interface cable required
Zebra DS8108-DL - Barcode scanner - handheld - 2D imager - decoded - interface cable required
Ražotājs
•ZEBRA
Ražotāja kods
•DS8108-DL600000SGW
Artikuls
•1784756
Intrastat
•84716070
Pakas svars
•0.154 kg
1D2DUSBSeriālais ports
Type
Barcode scanner - handheld
Colour
Nova white
Interface Type
Interface cable required
Minimum Bar Width
3 mil
Scan Element Type
2D imager
Sensor Resolution
1280 x 960
Light Source Wave Length
617 nm
Scan Mode
Single-pass
Skew (Degrees)
60
Pitch (Degrees)
60
Print Contrast Signal (PCS)
16%
Decode Capability
Code 39, QR code, Code 128, Data Matrix
TTL Decoding
Decoded
Connectivity Technology
Wired
OK Notification
Beeper, LED indicator
Features
PRZM Intelligent Imaging technology, driving licence parsing
Clock Speed
800 MHz
Interfaces
1 x USB ¦ 1 x RS-232 ¦ 1 x keyboard wedge
Included Accessories
Stand
Compliant Standards
EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class B, RoHS, FIPS 140-2, UL 60950-1, CAN/CSA C22.2 No. 60950-1-07, IP42, EN 50581, IEC 62471, EN 55032 Class B, ICES-003 issue 6 Class B, EN60950-1 (2nd Edition) + A11 + A1 + A12 + A2:2013, EN60950-1 (2nd Edition) + A1 + A2
Width
6.6 cm
Depth
10.7 cm
Height
16.8 cm
Weight
154 g
Service & Support
Limited warranty - 5 years
Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 95% (non-condensing)
Drop Specification
1.8 m to concrete
