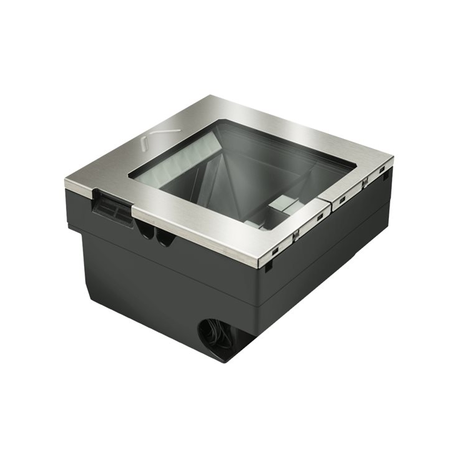

Datalogic Magellan 3510HSi - Barcode scanner - integrated - 2D imager - decoded - USB
Datalogic Magellan 3510HSi - Barcode scanner - integrated - 2D imager - decoded - USB
Ražotājs
•DATALOGIC
Ražotāja kods
•M3513-010210-00604
Artikuls
•1783615
Intrastat
•84719000
Pakas svars
•1.898 kg
Ražotāja cena
•644.00 €
Kopā pieejams (gab.)
•65
Tuvākā piegāde
•23.03.2026
Built-in scanner, 2D, imager, tin oxide glas, micro SD-Slot, multi-interface (RS232, USB), 0,98kg, IP52, incl.: cable (USB, cable length 4.5 m), mounting frame, order separately: power supply unit, power cable
Type
Barcode scanner - integrated - stationary
Interface Type
USB
Minimum Bar Width
5 mil
Scan Element Type
2D imager - LED
Sensor Resolution
1280 x 800
Window Glass Type
Tin Oxide Glass (TO)
Scan Mode
Fixed projection
Max Working Distance
10.2 cm
Skew (Degrees)
75
Pitch (Degrees)
65
Print Contrast Signal (PCS)
25%
Decode Capability
GS1 DataBar, QR code, Aztec code, MicroPDF417, PDF417, Data Matrix, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, GS1 DataBar Composites, GS1 DataBar Stacked
TTL Decoding
Decoded
Connectivity Technology
Wired
OK Notification
Beeper, LED indicator
Features
Checkpoint Electronic Article Surveillance (EAS), USB keyboard emulation, Micro SD card slot, USB powered, 25 kV ESD protection (air discharge)
Interfaces
1 x USB - Type A
Included Accessories
Mounting kit
Cables Included
1 x USB cable - 4.57 m
Compliant Standards
IP52, China RoHS, EN 62471:2008, IEC 62471, EU RoHS
Voltage
DC 5 - 12 V
Width
15.2 cm
Depth
15.2 cm
Height
8.7 cm
Weight
980 g
Service & Support
Limited warranty - 3 years
Min Operating Temperature
10 °C
Max Operating Temperature
40 °C
Humidity Range Operating
5 - 95% (non-condensing)
