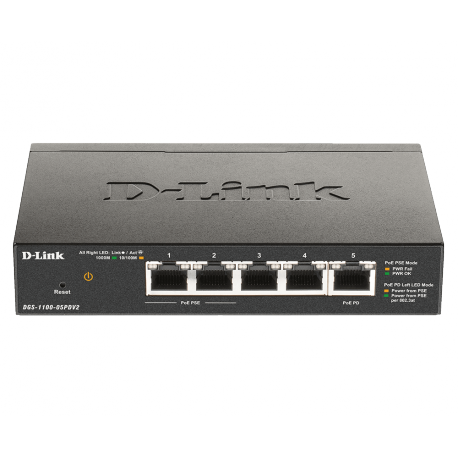

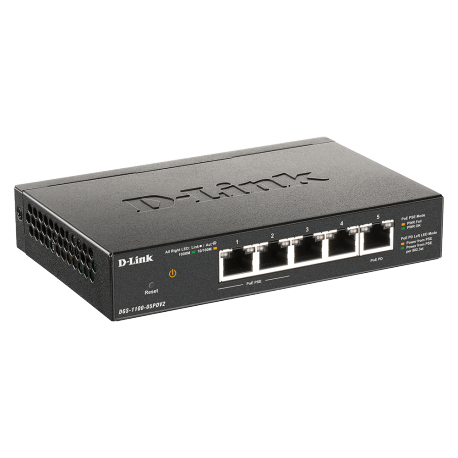

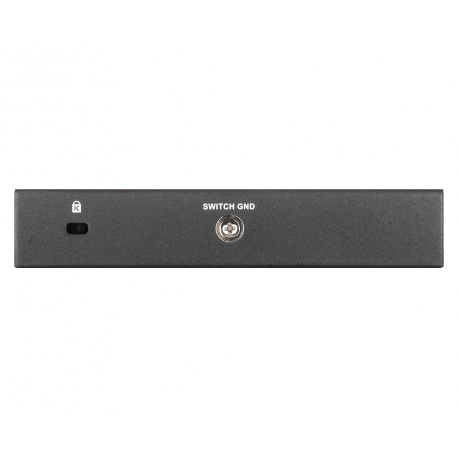

D-Link DGS 1100-05PDV2 - Switch - smart - 5 x 10 / 100 / 1000 (2 PoE) - desktop - PoE (18 W)
D-Link DGS 1100-05PDV2 - Switch - smart - 5 x 10 / 100 / 1000 (2 PoE) - desktop - PoE (18 W)
Ražotājs
•D-LINK
Ražotāja kods
•DGS-1100-05PDV2
Artikuls
•1767276
Intrastat
•85176200
Pakas svars
•0.84 kg
Kopā pieejams (gab.)
•47
Tuvākā piegāde
•16.03.2026
Device Type
Switch - 5 ports - smart
Enclosure Type
Desktop
Subtype
Gigabit Ethernet
Ports
5 x 10/100/1000 (2 PoE)
Power Over Ethernet (PoE)
PoE
PoE Budget
18 W
Performance
Switching capacity: 10 Gbps ¦ Forwarding performance: 7.44 Mpps
Capacity
VLAN groups: 128 ¦ VLAN IDs: 4094 ¦ IGMP groups: 128
MAC Address Table Size
2K entries
Routing Protocol
IGMPv2, IGMP, IGMPv3
Remote Management Protocol
SNMP 2, ICMP
Encryption Algorithm
SSL
Features
Flow control, auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, Broadcast Storm Control, full duplex mode, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Quality of Service (QoS), Cable Diagnostics Function, bandwidth control, fanless, LLDP support, Port Security, DHCP client, tagged VLAN, DiffServ Code Point (DSCP) support, 1Mbit packet buffer, IGMP querier, Voice VLAN, VLAN management, VLAN group, Energy-Efficient Ethernet (EEE), Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection, port-based VLAN, port-based QoS, Unknown Storm Control, DNA support, Asymmetric VLAN
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Flash Memory
2 MB
Status Indicators
Power, status, PoE, link/activity/speed
Interfaces
5 x 1000Base-T RJ-45 2 ports (PoE) / 1 port Power Delivery
Power Consumption Operational
3.24 Watt
Power Consumption Stand by
1.728 Watt
MTBF
2,357,475 hours
Compliant Standards
FCC Class A certified, C-Tick, BSMI, cUL, CB, CCC, RoHS, LVD, VCCI Class A
Software Included
D-Link Network Assistant
Width
15 cm
Depth
9.7 cm
Height
2.8 cm
Weight
840 g
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 95% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
0 - 95% (non-condensing)
