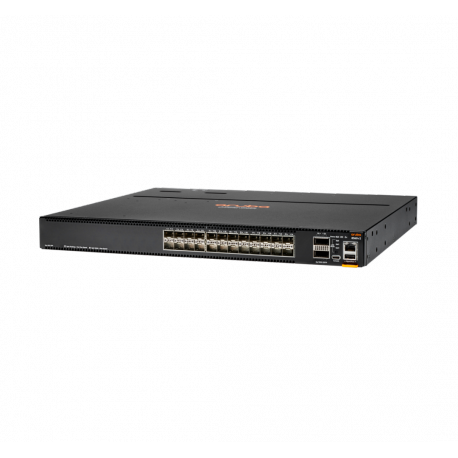

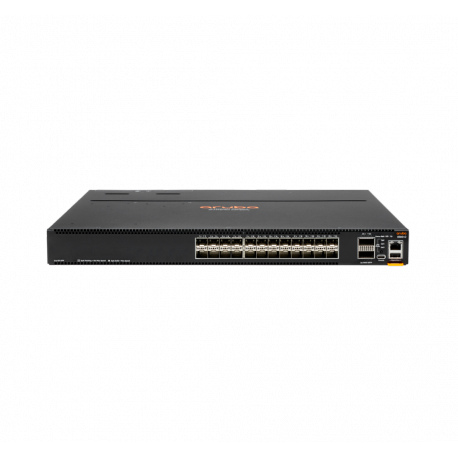

HPE Aruba CX 8360-24XF2C v2 - Switch - L3 - Managed - 24 x 1 Gigabit / 10 Gigabit SFP / SFP+ + 2 x 40/100 Gigabit QSFP+ / QSFP28 - front to back airflow - rack-mountable
HPE Aruba CX 8360-24XF2C v2 - Switch - L3 - Managed - 24 x 1 Gigabit / 10 Gigabit SFP / SFP+ + 2 x 40/100 Gigabit QSFP+ / QSFP28 - front to back airflow - rack-mountable
Ražotājs
•HPE
Ražotāja kods
•JL710C
Artikuls
•3169983
Intrastat
•85176200
Pakas svars
•8.07 kg
Kopā pieejams (gab.)
•1
Tuvākā piegāde
•30.03.2026
Device Type
Switch - 24 ports - L3 - Managed
Enclosure Type
Front to back airflow rack-mountable 1U
Subtype
10 Gigabit Ethernet
Ports
24 x 1 Gigabit / 10 Gigabit SFP / SFP+ + 2 x 40/100 Gigabit QSFP+ / QSFP28
Performance
Switching capacity: 880 Gbps
Capacity
VLANs supported: 4094
IGMP groups: 7000
MLD groups: 7000
IPv4 routes (Multicast): 7000
IPv6 routes (Multicast): 7000
IPv4 ACL entries (egress): 8192
IPv6 ACL entries (egress): 2048
MAC addresses: 212992
Host table entries (IPv4): 145780
Host table entries (IPv6): 145780
IPv4 routes (Unicast): 606977
IPv6 routes (Unicast): 630784
IPv4 ACL entries (ingress): 65536
IPv6 ACL entries (ingress): 16384
MAC ACL entries (egress): 8192
MAC ACL entries (ingress): 65536
Jumbo Frame Support
9KB
Routing Protocol
OSPF, BGP-4, BGP, IGMP, VRRP, PIM-SM, static IPv4 routing, static IPv6 routing, MLD, Bidirectional Forwarding Detection (BFD)
Remote Management Protocol
SNMP, RMON, TFTP, CLI, SFTP, NTP, DHCP
Encryption Algorithm
EAP-TLS
Authentication Method
RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features
ARP support, sFlow, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), Data Center Bridging (DCB), Virtual Routing and Forwarding (VRF), packet storm protection, Loopback, Ethernet Ring Protection Switching (ERPS), Explicit Congestion Notification (ECN), RDMA over Converged Ethernet (RoCE) v2, Virtual Switch Extension (VSX), Rapid PVST+ (RPVST+), Unidirectional Link Detection (UDLD), VXLAN Distributed Anycast Gateway, VXLAN ARP/ND Suppression, REST API interface, job scheduler framework, dual flash Images, IP Directed Broadcast
Compliant Standards
IEEE 802.1D, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.1ab (LLDP)
Processor
1: 1.8 GHz
RAM
16 GB
Flash Memory
32 GB
Interfaces
24 x 1/10Gbit LAN SFP+
2 x 40/100Gbit LAN QSFP28/QSFP+
1 x serial RJ-45
1 x console Type C
1 x management Type A
Power Device
Internal power supply - hot-plug
Installed Qty
2
Max Supported Qty
2
Power Redundancy
Yes
Power Provided
550 Watt
Voltage Required
AC 100-127/200-240 V (50/60 Hz)
Power Consumption Stand by
120 Watt
Included Accessories
3 fan trays, rack kit (2 post)
Rack Mounting Kit
Included
Compliant Standards
FCC Class A certified, CISPR 24, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1 Second Edition, VCCI Class A, EN 50581:2012, CNS 13438, CSA 22.2 No. 60950-1, EN 61000-3-3:2013, EN 55024:2010, CNS 13438 Class A, EN 55032:2015, CISPR 32 Class A, EN 61000-3-2:2014 Class A, cUL No.60950-1 Second Edition, CISPR 35, EN 55035:2017, IEC 62368-1: 2014, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, EN 62368-1:2014 Second Edition, IEC60950-1:2005, Second edition + Am1:2009 + A2:2013
Width
44.25 cm
Depth
40.64 cm
Height
4.4 cm
Weight
8.07 kg
Service & Support
Limited warranty - lifetime
Min Operating Temperature
0 °C
Max Operating Temperature
45 °C
Humidity Range Operating
15 - 95% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
15 - 95% (non-condensing)
