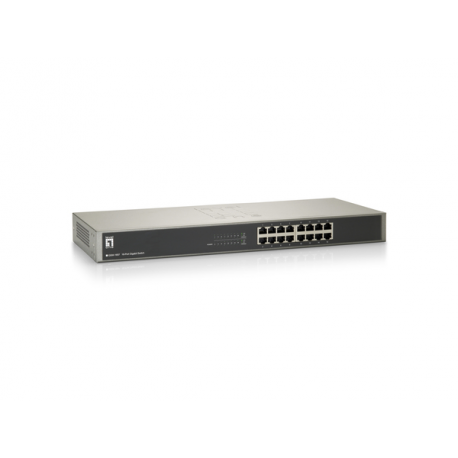

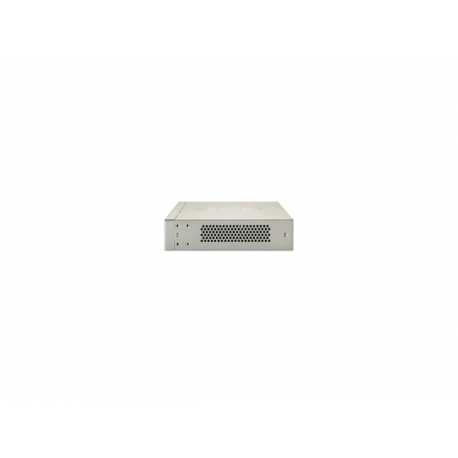

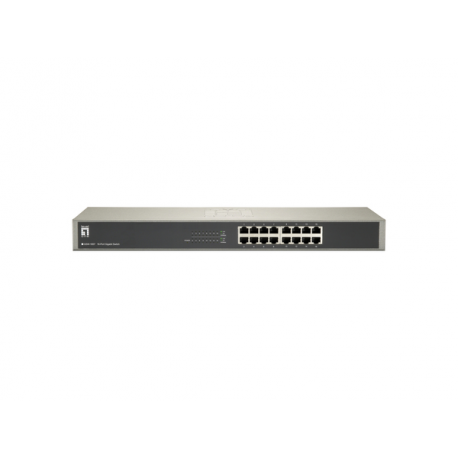

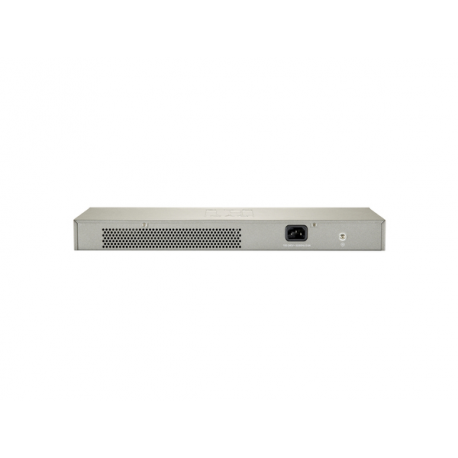

LevelOne GSW-1657 - Switch - 16 x 10 / 100 / 1000 - desktop
LevelOne GSW-1657 - Switch - 16 x 10 / 100 / 1000 - desktop
Ražotājs
•LEVELONE
Ražotāja kods
•GSW-1657
Artikuls
•3115583
Intrastat
•85176200
Pakas svars
•2.15 kg
Kopā pieejams (gab.)
•100
Tuvākā piegāde
•30.03.2026
Switch type
Unmanaged
Quality of Service (QoS) support
Y
Basic switching RJ-45 Ethernet ports quantity
16
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Networking standards
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
10G support
N
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported
Cat5, Cat6, Cat7
Full duplex
Y
Flow control support
Y
Auto MDI/MDI-X
Y
MAC address table
8192 entries
Switching capacity
32 Gbit/s
Store-and-forward
Y
Jumbo frames support
Y
Jumbo frames
10000
Packet forwarding rate (1 Gbps)
1488000 pps
Packet forwarding rate (100 Mbps)
148000 pps
Packet forwarding rate (10 Mbps)
14880 pps
Packet buffer memory
0.5 MB
Rack mounting
Y
Product colour
Black, Grey
LED indicators
Activity, Link
Certification
FCC, CE
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Input current
0.6 A
Power consumption (typical)
13.3 W
Power over Ethernet (PoE)
N
Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
10 - 90%
Width
140 mm
Depth
440 mm
Height
44 mm
Weight
1.48 kg
Cables included
AC
Quick start guide
Y
Mounting brackets included
Y
Package width
224 mm
Package depth
486 mm
Package height
77 mm
Package weight
2.15 kg
Master (outer) case width
405 mm
Master (outer) case length
500 mm
Master (outer) case height
240 mm
Harmonized System (HS) code
85176990
Master (outer) case gross weight
11.8 kg
