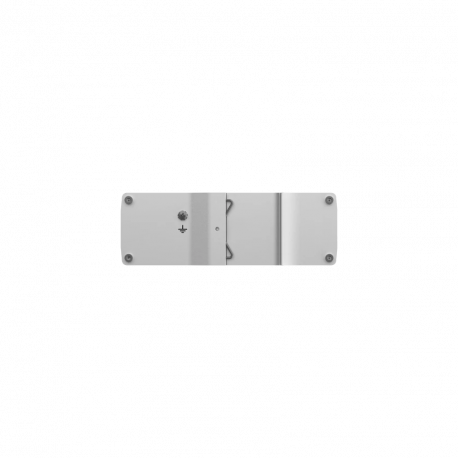

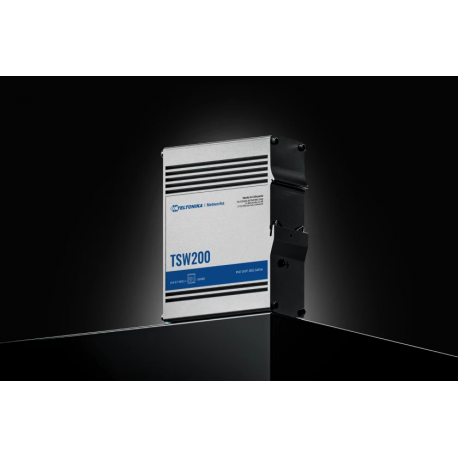

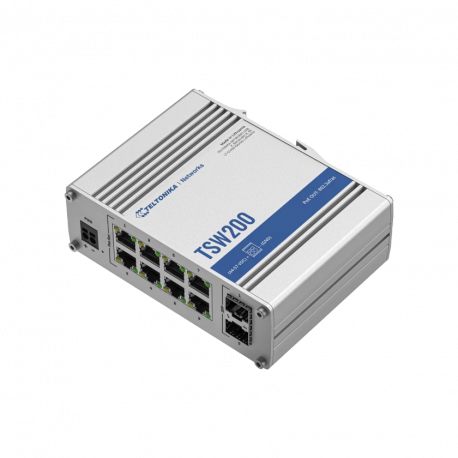

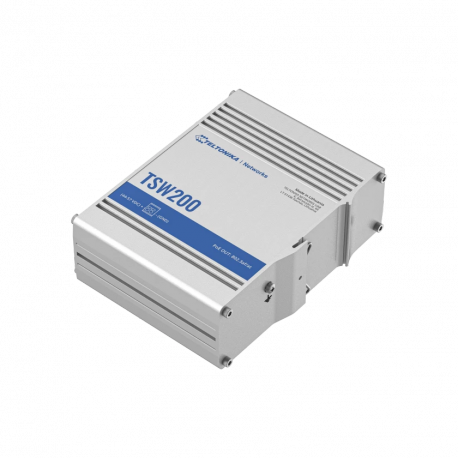

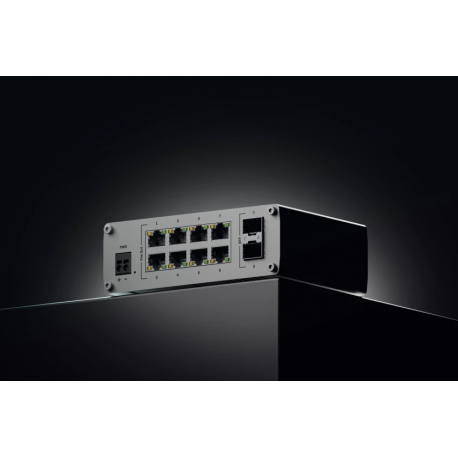

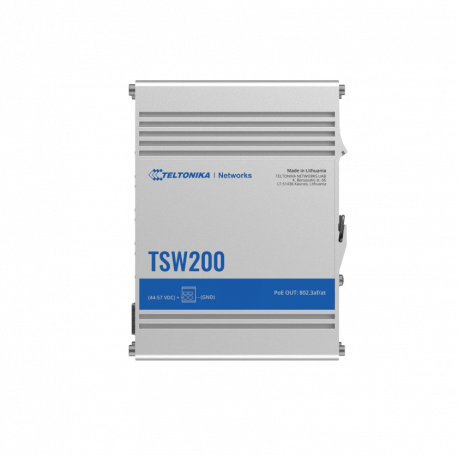

Teltonika TSW200 - Switch - DIN rail mountable - PoE+ (240 W)
Teltonika TSW200 - Switch - DIN rail mountable - PoE+ (240 W)
Ražotājs
•TELTONIKA
Ražotāja kods
•TSW200000050
Artikuls
•3456248
Intrastat
•85176200
Pakas svars
•0.456 kg
Kopā pieejams (gab.)
•3
Tuvākā piegāde
•17.03.2026
Device Type
Switch - 8 ports
Enclosure Type
DIN rail mountable
Subtype
Gigabit Ethernet
Power Over Ethernet (PoE)
PoE+
PoE Budget
240 W
Performance
Non-blocking bandwidth: 20 Gbps
Capacity
Packet buffer size: 512 KB
MAC Address Table Size
2K entries
Jumbo Frame Support
9216 bytes
Features
Auto-uplink (auto MDI/MDI-X), PROFINET, aluminium housing
Compliant Standards
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1x, IEEE 802.3az, IEEE 802.3af, IEEE 802.3at
Status Indicators
Power, network, SFP
Interfaces

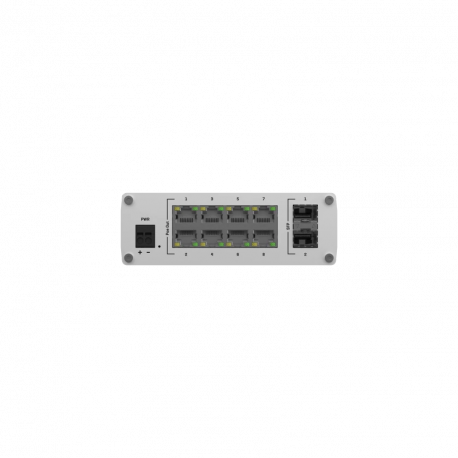

8 x 1000Base-T RJ-45 30 W ¦ 2 x LAN SFP
Power Device
External power adapter
Voltage Required
DC 7 - 57 V
Power Consumption Operational
5.5 Watt
Power Consumption Stand by
1.81 Watt
Compliant Standards
IP30, UKCA, CITC, ANRT, FCC, IC, CB, EN 55032:2015+A1:2020, EN 55035:2017 + A11:2020, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019, EN 61000-4-2:2009, EN IEC 61000-4-3:2020, EN 61000-4-4:2012, EN 61000-4-5:2014+A1:2017, EN 61000-4-6:2014, EN IEC 61000-4-11:2020, IEC 62368-1:2018, EN IEC 62368-1:2020+A11:2020
Width
13.2 cm
Depth
9.51 cm
Height
4.42 cm
Weight
517 kg
Min Operating Temperature
-40 °C
Max Operating Temperature
75 °C
Humidity Range Operating
10 - 90% (non-condensing)
