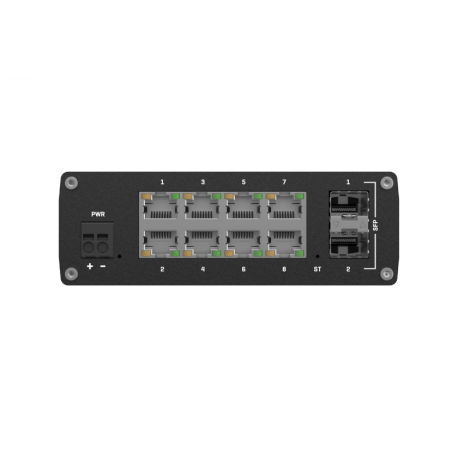

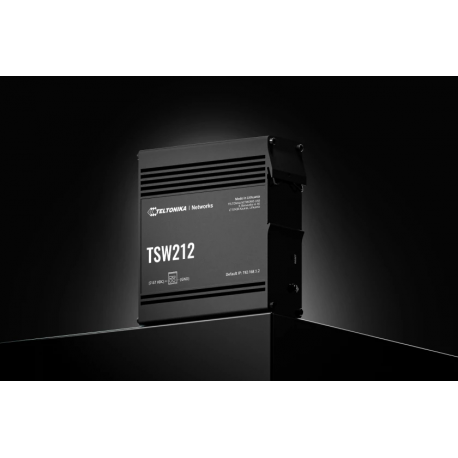

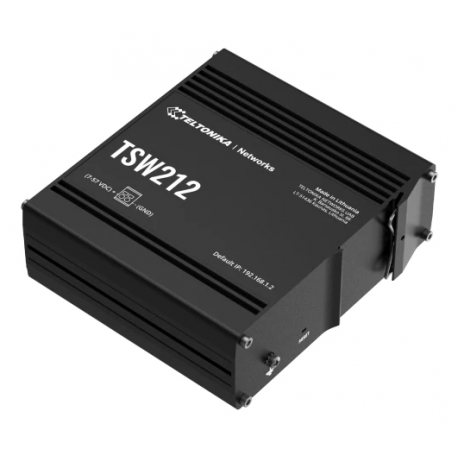

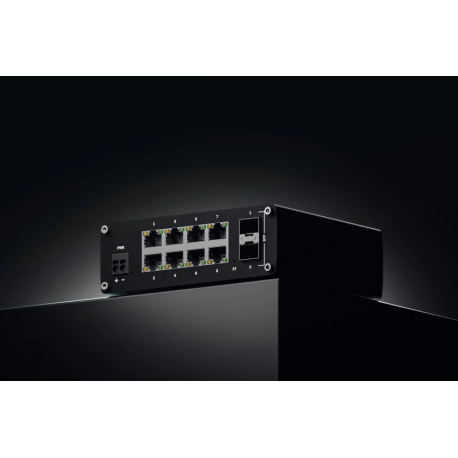

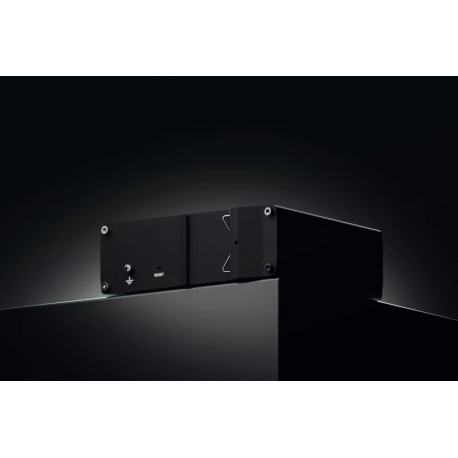

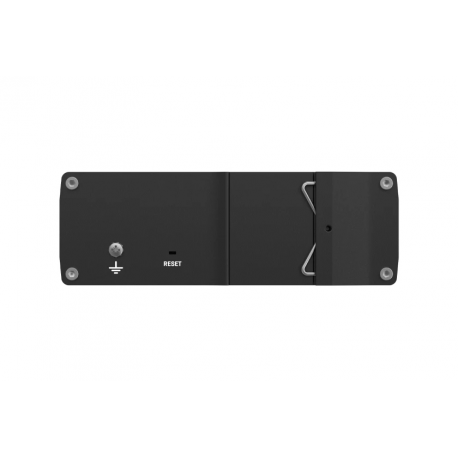

Teltonika TSW212 - Switch - Managed - 8 x 10 / 100 / 1000 + 2 x SFP - DIN rail mountable, surface-mountable
Teltonika TSW212 - Switch - Managed - 8 x 10 / 100 / 1000 + 2 x SFP - DIN rail mountable, surface-mountable
Ražotājs
•TELTONIKA
Ražotāja kods
•TSW212
Artikuls
•4488719
Intrastat
•85176200
Pakas svars
•0.615 kg
Kopā pieejams (gab.)
•13
Tuvākā piegāde
•16.03.2026
Device Type
Switch - 8 ports - Managed
Enclosure Type
DIN rail mountable, surface-mountable
Subtype
Gigabit Ethernet
Ports
8 x 10/100/1000 + 2 x SFP
Performance
Non-blocking bandwidth: 20 Gbps ¦ Forwarding rate: 14.88 Mpps
Capacity
Packet buffer size: 512 KB
MAC Address Table Size
8K entries
Jumbo Frame Support
10000 bytes
Routing Protocol
Static IPv4 routing, static IPv6 routing, RSTP, STP
Remote Management Protocol
SNMP 2, SNMP 3, DHCP, RADIUS
Authentication Method
RADIUS, TACACS+
Features
VLAN support, auto-uplink (auto MDI/MDI-X), traffic shaping, port mirroring, MRP support, QoS, DHCP server, reset button, LLDP support, DHCP client, port isolation, FOTA, ToS, EtherNet/IP enabled, PROFINET, Storm Control, rate limit, PSK, EEE, DSCP prioritisation, Teltonika RMS, DHCPv6 client, loop protection, PAM, ground points, anodised aluminium housing
Compliant Standards
IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.1x, IEEE 802.3az
RAM
128 MB DDR3 SDRAM
Flash Memory
16 MB
Status Indicators
Power, SFP, Ethernet link/activity, AUX
Interfaces
8 x 10/100/1000 Base-T RJ-45 ¦ 2 x 1000Base-X SFP
Voltage Required
DC 7 - 57 V
Compliant Standards
CB, IC, FCC, RoHS, REACH, IP30, EN 61000-4-2:2009, RCM, EN 61000-4-6:2014, NBTC, EN 61000-4-4:2012, ANRT, UKCA, IEC 62368-1:2018, EN 55035:2017+A11:2020, EN 61000-4-3:2020, EN 61000-4-5:2014+A1:2017, EN IEC 61000-4-11:2020, EN IEC 62368-1:2020+A11:2020, EN IEC 61000-3-2:2019+A1:2021, EN 55032:2015+A1:2020+A11:2020, IEC 61000-4-3:2020, EN 61000-3-3:2013+A1:2019+A2:2021, AS/NZS 62368-1:2022
Software Included
WitchOS
Width
13.2 cm
Depth
12.22 cm
Height
4.42 cm
Weight
615 g
Min Operating Temperature
-40 °C
Max Operating Temperature
75 °C
Humidity Range Operating
10 - 90% (non-condensing)
