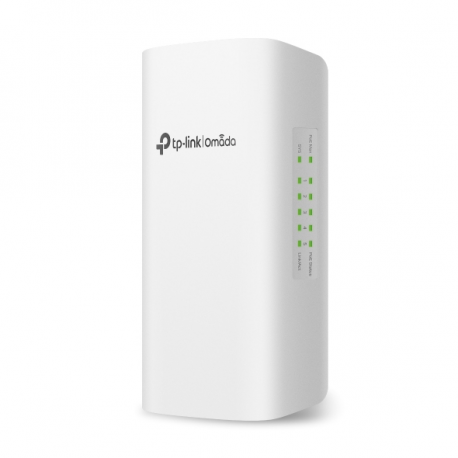

TP-Link Omada SG2005P-PD V1.6 - Switch - smart - 1 x 10 / 100 / 1000 (PoE++) + 4 x 10 / 100 / 1000 (PoE+) - pole-mountable, wall-mountable - PoE++ (64 W)
TP-Link Omada SG2005P-PD V1.6 - Switch - smart - 1 x 10 / 100 / 1000 (PoE++) + 4 x 10 / 100 / 1000 (PoE+) - pole-mountable, wall-mountable - PoE++ (64 W)
Ražotājs
•TP-LINK
Ražotāja kods
•SG2005P-PD
Artikuls
•3339276
Intrastat
•85176200
Pakas svars
•0.71 kg
Kopā pieejams (gab.)
•30
Tuvākā piegāde
•16.03.2026
Device Type
Switch - 5 ports - smart
Enclosure Type
Pole-mountable, wall-mountable
Subtype
Gigabit Ethernet
Ports
1 x 10/100/1000 (PoE++) + 4 x 10/100/1000 (PoE+)
Power Over Ethernet (PoE)
PoE++
PoE Budget
64 W
Max Transfer Distance
100 m
Performance
Switching capacity: 10 Gbps ¦ Packet forwarding rate: 7.44 Mpps ¦ Packet buffer size: 4.1 Mbit
Capacity
Priority queues: 8 ¦ IPv6 interfaces: 32 ¦ IPv4 interfaces: 32 ¦ Static routes: 32 ¦ Multicast groups: 511 ¦ Total link aggregation groups: 8 ¦ Multicast filters: 256 ¦ Layer 2 multicast filtering entries per profile: 16 ¦ VLAN groups: 4000 ¦ MAC VLAN address entries: 12 ¦ Access control entries: 230 ¦ IPv6 MAC port binding entries: 512 ¦ IPv4 source guard entries: 253 ¦ IPv6 source guard entries: 183 ¦ MAC addresses per port: 64
MAC Address Table Size
8K entries
Jumbo Frame Support
9KB
Routing Protocol
Static IP routing, STP, RSTP, MSTP, IGMP, IGMPv2, IGMPv3, MLD, MLDv2
Remote Management Protocol
RSTP, IPv4, IPv6, TCP/IP, UDP, SSH, DHCP, HTTPS, CLI, MIB, RADIUS, RMON 1, RMON 2, RMON 3, RMON 9, SNMP, SNMP 2c, SNMP 3, SSH-2, ICMP, Telnet, HTTP, TFTP
Encryption Algorithm
SSL 3.0, TLS 1.2
Authentication Method
PAP, EAP-MD5, Secure Shell (SSH), Secure Shell v.2 (SSH2), RADIUS
Features
Weatherproof, waterproof, dustproof, UV resistant casing, 4KV lightning protection (common mode), cloud managed, ACL support, VLAN support, QoS, SDN, fanless, long range PoE+ up to 200m, CoS, DSCP prioritisation, queue scheduling support, SP, WRR, bandwidth control, rate limit, Broadcast Storm Control, Multicast Storm Control, Storm Control, Unicast Storm Control, Unknown Storm Control, DHCP server, DHCP relay, proxy ARP, Link Aggregation, BPDU Filter, loopback detection, flow control, port mirroring, DLDP support, LLDP-MED, IGMP snooping, MVR, Multicast filtering function, MLD snooping, device discovery, firmware upgradable, network monitoring, schedule reboot, path MTU discovery, GVRP, Voice VLAN, AAA, DHCP snooping, ND detection, DoS attack prevention, port isolation, IPMB, ZTP, BOOTP support, Cable Diagnostics Function, EEE, SNTP support, system log, Guest VLAN, MAB, Port Security, ARP inspection, fast leave, ToS, reset button
Compliant Standards
IEEE 802.3af, IEEE 802.3bt, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.1ab (LLDP)
Status Indicators
System, PoE max, link/activity, PoE activity
Interfaces
1 x 10/100/1000 Base-T RJ-45 PoE++ - 30 W ¦ 4 x 10/100/1000 Base-T RJ-45 PoE+
Included Accessories
Mounting kit
Compliant Standards
IP55, FCC, RoHS
OS Required
Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10/11, Apple MacOS, Novell NetWare, UNIX, Linux
Width
10 cm
Depth
3.85 cm
Height
17 cm
Min Operating Temperature
-40 °C
Max Operating Temperature
60 °C
Humidity Range Operating
10 - 90% RH (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
5 - 90% RH (non-condensing)
