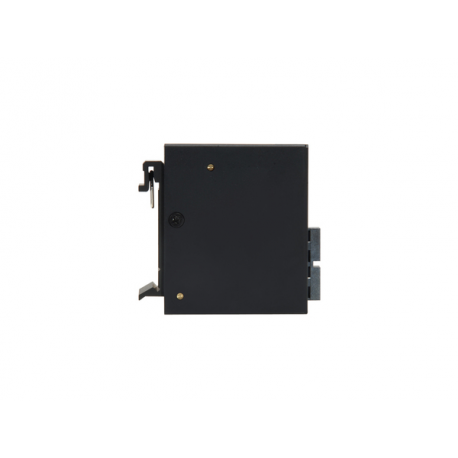

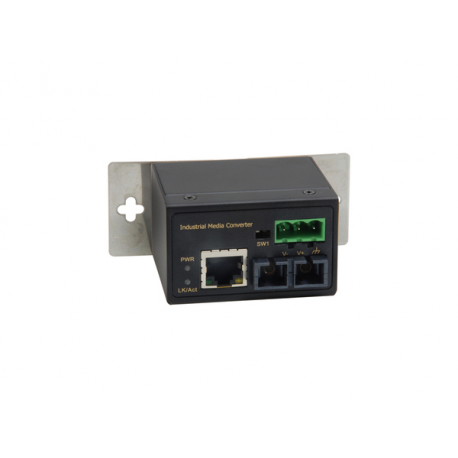

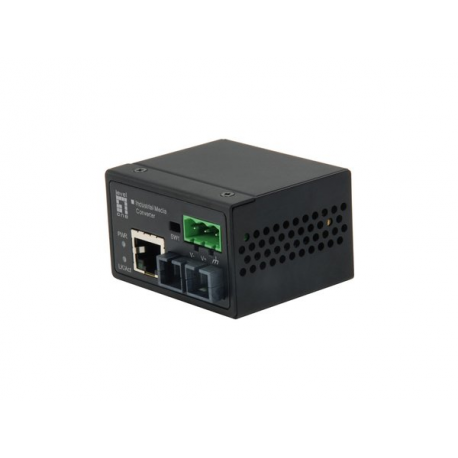

LevelOne IEC-4001 - Media converter - 100Mb LAN - 10Base-T, 100Base-FX, 100Base-TX - RJ-45 / SC multi-mode - up to 2 km
LevelOne IEC-4001 - Media converter - 100Mb LAN - 10Base-T, 100Base-FX, 100Base-TX - RJ-45 / SC multi-mode - up to 2 km
Ražotājs
•LEVELONE
Ražotāja kods
•IEC-4001
Artikuls
•2218536
Intrastat
•85176990
Pakas svars
•0.26 kg
Kopā pieejams (gab.)
•90
Tuvākā piegāde
•30.03.2026
Device Type
Media converter
Form Factor
DIN rail mountable
Connectivity Technology
Wired
Cabling Type
10Base-T, 100Base-FX, 100Base-TX
Data Link Protocol
10Mb LAN, 100Mb LAN
Data Transfer Rate
100 Mbps
Max Transfer Distance
2 km
Status Indicators
Power, link/activity
Features
Auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, half duplex mode, full duplex mode, Link Fault Pass Through function (LFP)
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Interfaces
1 x Ethernet 10Base-T/100Base-TX - RJ-45 female ¦ 1 x Ethernet 100Base-FX - SC multi-mode female x 2
Compliant Standards
EN55022 Class A, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, RoHS, EN 61000-4-8, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, UL 508, REACH, FCC Part 15 B Class A, EN 50121-4
Power Device
External power adapter
Voltage Required
DC 12 - 60 / 18 - 36 V
Power Consumption Operational
1.44 Watt
Width
5.9 cm
Depth
4.9 cm
Height
3.6 cm
Weight
260 g
Min Operating Temperature
-40 °C
Max Operating Temperature
75 °C
Humidity Range Operating
5 - 95% (non-condensing)
