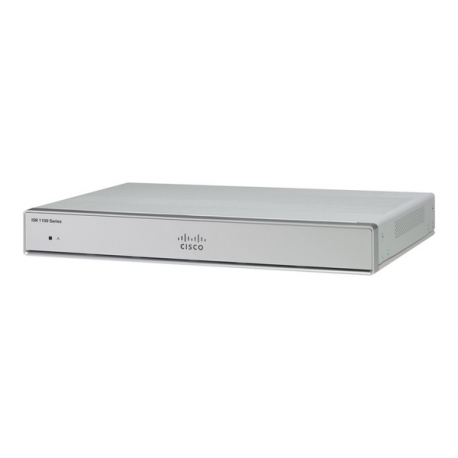

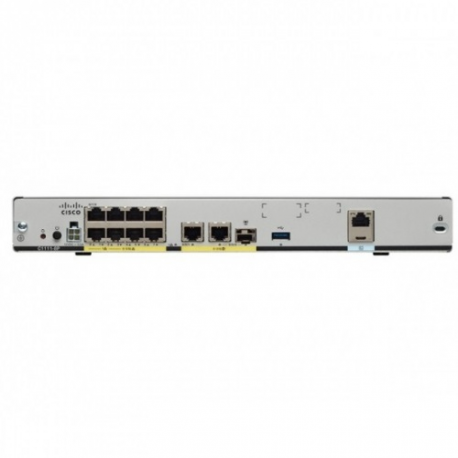

Cisco Integrated Services Router 1111 - Router - 8-port switch - GigE - WAN ports: 2
Cisco Integrated Services Router 1111 - Router - 8-port switch - GigE - WAN ports: 2
Ražotājs
•CISCO
Ražotāja kods
•C1111X-8P
Artikuls
•3135264
Intrastat
•85176200
Pakas svars
•2.59 kg
Kopā pieejams (gab.)
•1
Tuvākā piegāde
•30.03.2026
Ethernet WAN
Y
DSL WAN
N
SIM card slot
N
3G/4G USB modem compatibility
Y
Networking standards
IEEE 802.1Q, IEEE 802.1ag
Ethernet interface type
Gigabit Ethernet
Ethernet LAN
Y
Cabling technology
10/100/1000Base-T(X)
Ethernet LAN data rates
10,100,1000 Mbit/s
Static route
Y
VLAN support
Y
Multicast support
Y
Port forwarding
Y
Frequency range
2.4 - 5 GHz
Mobile network generation
4G
Short Message Service (SMS)
Y
ADSL
Y
ADSL2
Y
Web-based management
Y
Quality of Service (QoS) support
Y
Ethernet LAN (RJ-45) ports
8
Gigabit Ethernet (copper) ports quantity
8
Fast Ethernet (copper) ports quantity
1
Power over Ethernet (PoE) ports quantity
6
Installed SFP modules quantity
4
USB ports quantity
1
USB version
3.2 Gen 1 (3.1 Gen 1)
DHCP client
Y
DHCP server
Y
Switching protocols
RFC 2338
Routing protocols
VRRP
Data link protocols
HDLC
Management protocols
IGMPv3
IPv4 & IPv6 features
Dual stack IPv4/IPv6
Supported network protocols
ACL, NAT, QoS, BFD, VRF Lite, IP SLA
Supported protocols
IPv4, IPv6, RIP, RIPv2, OSPF, EIGRP, BGP, IS-IS, IGMPv3, PIM SM, SSM, RSVP, ERSPAN, IPSLA, EEM, IKE, ACL, EVC, DHCP, FR, DNS, LISP, HSRP, RADIUS, AAA, AVC, DVMRP, MPLS, IPsec, L2TPv3, BFD
Security algorithms
3DES, 128-bit AES, 256-bit AES, DES
Firewall
Y
Authentication method
RSA (748/1024/2048 bit), ECDSA (256/384 bit); Integrity: MD5, SHA, SHA-256, SHA-384, SHA512
Access Control List (ACL)
Y
Network address translation (NAT)
Y
Harmonized System (HS) code
85176990
Flash memory
4000 MB
Internal memory
4000 MB
Internal memory type
DRAM
Certification
UL 60950-1.and EN 60950-1.
CAN/CSA C22.2 No. 60950-1.
CB to IEC 60950-1, 2
Product colour
Grey
Wall mountable
Y
LED indicators
Link, Status
Antenna type
External
Antennas quantity
2
Detachable antenna(s)
Y
Power consumption (typical)
66 W
Power source type
AC, PoE
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Output voltage
12 V
Power over Ethernet (PoE)
Y
Operating temperature (T-T)
32 - 104 °C
Storage temperature (T-T)
-4 - 149 °C
Operating relative humidity (H-H)
10 - 85%
Storage relative humidity (H-H)
5 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 4570 m
Width
323 mm
Depth
244 mm
Height
44 mm
Weight
1.94 kg
AC adapter included
Y
Manual
Y
Quick start guide
Y
Package type
Box
