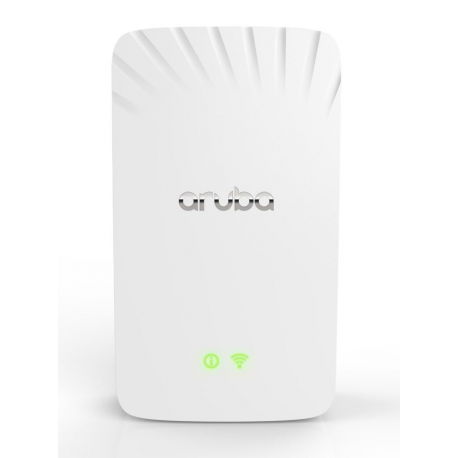

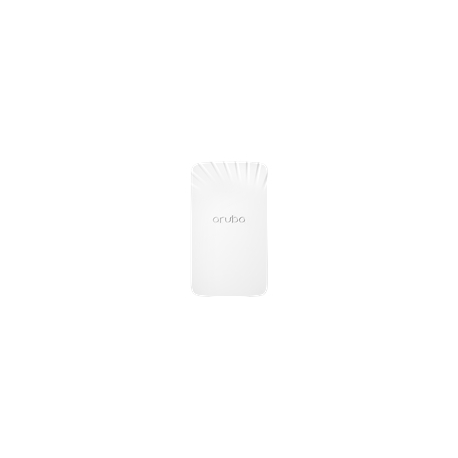

HPE Aruba AP-503H (RW) Unified Hospitality - Radio access point - Wi-Fi 6 - 2.4 GHz, 5 GHz - BTO
HPE Aruba AP-503H (RW) Unified Hospitality - Radio access point - Wi-Fi 6 - 2.4 GHz, 5 GHz - BTO
Ražotājs
•HPE
Ražotāja kods
•R3V36A
Artikuls
•3006992
Intrastat
•85176930
Pakas svars
•0.39 kg
Kopā pieejams (gab.)
•5
Tuvākā piegāde
•16.03.2026
Device Type
Radio access point
Ruggedized Design
Indoor
Width
8.6 cm
Depth
4.7 cm
Height
15 cm
Weight
360 g
Form Factor
External
Connectivity Technology
Wireless
Data Transfer Rate
1.5 Gbps
Line Coding Format
CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, 1024 QAM
Data Link Protocol
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6)
Spread Spectrum Method
OFDM, DSSS, OFDMA
Frequency Band
2.4 GHz, 5 GHz
Performance
Maximum data rate (5 GHz): 1.2 Gbps
Maximum data rate (2.4 GHz): 287 Mbps
VPN throughput (IPSec): 100 Mbps
Capacity
Wireless clients per Wi-Fi radio: 256
BSSIDs per radio: 16
Status Indicators
Port status, power, system, status, PoE
Features
Auto-uplink (auto MDI/MDI-X), DFS support, Wi-Fi Multimedia (WMM) support, Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), Advanced Cellular Coexistence (ACC), cyclic shift diversity (CSD), packet aggregation A-MPDU, packet aggregation A-MSDU, High-Throughput (HT) support, 2x2 MIMO technology, Very High Throughput (VHT) support, High Efficiency (HE) support, Target Wait Time (TWT), HPE SmartRate, Advanced IoT Coexistence (AIC)
Encryption Algorithm
WPA, WPA2, WPA3-Enterprise, Opportunistic Wireless Encryption (OWE), Simultaneous Authentication of Equals (SAE)
Compliant Standards
IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, Wi-Fi CERTIFIED, IEEE 802.11n, IEEE 802.3az, IEEE 802.11ac, IEEE 802.11ax
Antenna
Internal
Antenna Qty
2
Internet of Things (IoT) Compatible
Yes
Communications Technology
Bluetooth Low Energy (LE), Zigbee
Interfaces
2 x 1000Base-T - RJ-45
1 x 1000Base-T (PoE+) - RJ-45
1 x console - micro-USB
Compliant Standards
FCC, EN 60601-1-2, EN 60601-1-1, EMC 2014/30/EU, LVD 2014/35/EU, ISED, RED 2014/53/EU, IEC/EN 62368-1, IEC/EN 60950
Pricing Type
BTO
Power Over Ethernet (PoE) Supported
PoE Class 3
Shipping Width
11.1 cm
Shipping Depth
5.4 cm
Shipping Height
16.7 cm
Shipping Weight
450 g
Service & Support
Limited warranty - lifetime
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
5 - 93% (non-condensing)
