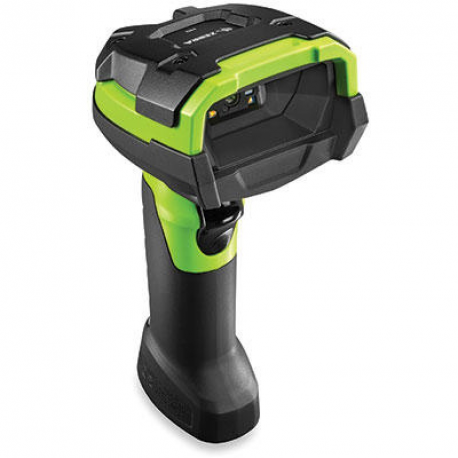

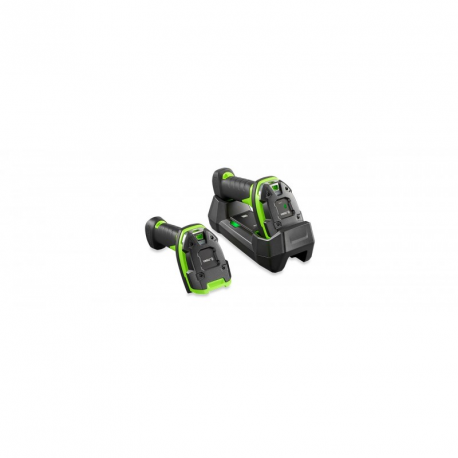

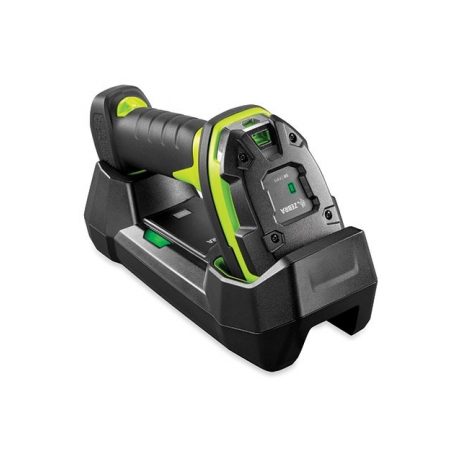

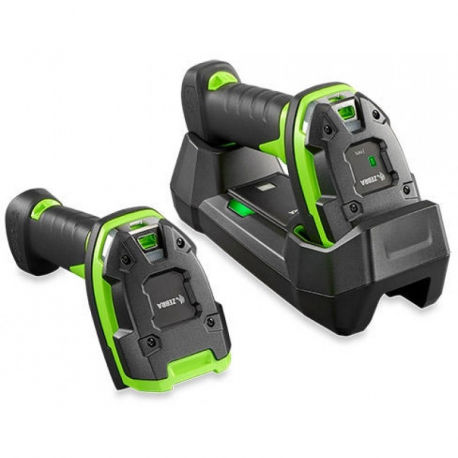

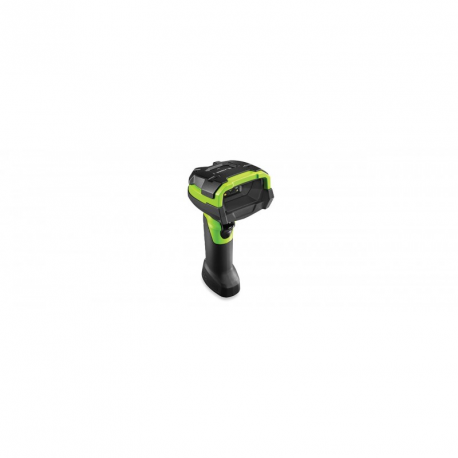

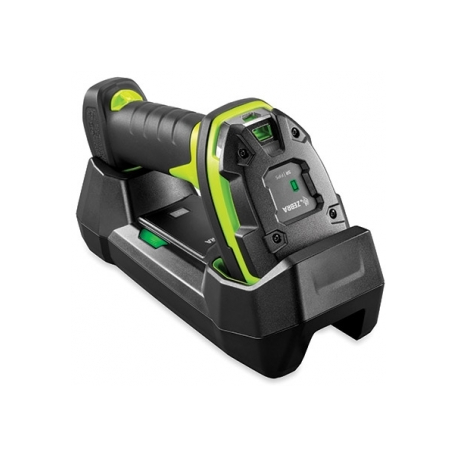

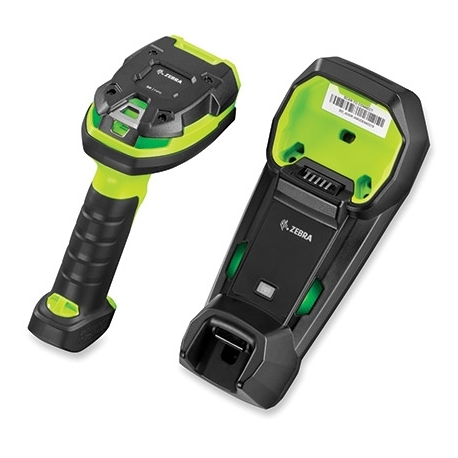

Zebra DS3678-SR - USB Kit - barcode scanner - portable - decoded - Bluetooth 4.0
Zebra DS3678-SR - USB Kit - barcode scanner - portable - decoded - Bluetooth 4.0
Ražotājs
•ZEBRA
Ražotāja kods
•DS3678-SR3U42A0SFW
Artikuls
•1330953
Intrastat
•84716070
Pakas svars
•1.622 kg
Ražotāja cena
•1039.26 €
Kopā pieejams (gab.)
•1246
Tuvākā piegāde
•23.03.2026
Bluetooth scanner, industry, 2D, imager (standard range), FIPS, multi-interface (RS232, KBW, USB), IP67, incl.: cable (USB), power supply unit, charging/transmitter cradle, order separately: power cable, colour: black, green
Type
Handheld bar code reader
Scanner type
1D/2D
Sensor type
LED
Linear (1D) barcodes supported
Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C.
2D (matrix & stacked) barcodes supported
Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Wavelength
610 nm
Tilt reading angle
-65 - 65°
Pitch reading angle
-65 - 65°
Yaw reading angle
-45 - 45°
Connectivity technology
Wired & Wireless
Standard interfaces
RS-232, USB, Keyboard wedge
Wireless range
100 m
Bluetooth version
4.0
Bluetooth Low Energy (BLE)
Y
Ethernet LAN
Y
Product colour
Black, Green
International Protection (IP) code
IP67
Protection features
Dust resistant, Shock resistant, Water resistant
LED indicators
Y
Programming function
Y
Power source type
Battery
Battery technology
Lithium-Ion (Li-Ion)
Battery capacity
3100 mAh
Number of reads per charge
100000
Weight
407 g
Width
142 mm
Depth
76 mm
Height
185 mm
Operating temperature (T-T)
-20 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
5 - 95%
Sustainability certificates
RoHS
Harmonized System (HS) code
84716070
Optical sensor resolution
1280 pixels
