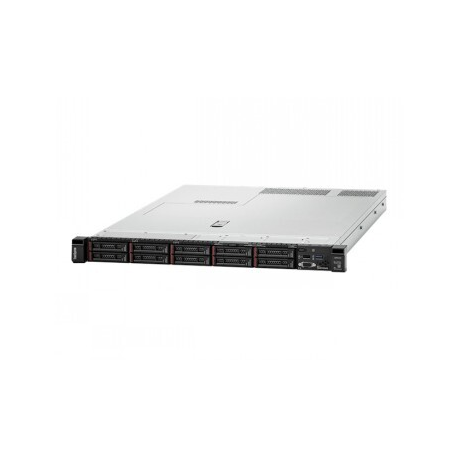

Lenovo ThinkSystem SR630 7X02 - Server - rack-mountable - 1U - 2-way - 1 x Xeon Silver 4208 / 2.1 GHz - RAM 32 GB - SAS - hot-swap 2.5" bay(s) - no HDD - G200e - no OS - monitor: none
Lenovo ThinkSystem SR630 7X02 - Server - rack-mountable - 1U - 2-way - 1 x Xeon Silver 4208 / 2.1 GHz - RAM 32 GB - SAS - hot-swap 2.5" bay(s) - no HDD - G200e - no OS - monitor: none
Manufacturer
•LENOVO
Reference
•7X02A0HTEA
Article
•3040790
Shipping weight
•6.964791 kg
Type
Server
Product Form Factor
Rack-mountable - 1U
Embedded Security
Trusted Platform Module (TPM 1.2) Security Chip
Server Scalability
2-way
Hot-Swap Bays Qty
8
Localisation
Region: EMEA
CPU
Intel Xeon Silver 4208
Clock Speed
2.1 GHz
Max Turbo Speed
3.2 GHz
Number of Cores
8-core
CPU Qty
1
Max CPU Qty
2
Chipset Type
Intel C624
Installed Size
11 MB
Cache Per Processor
11 MB
Installed Size
32 GB
Technology
DDR4 SDRAM - ECC
Effective Memory Speed
2400 MHz
Rated Memory Speed
2933 MHz
Form Factor
DIMM 288-pin
Slots
24 (Total) / 23 (empty)
Features
Registered, Memory Mirroring, Memory Sparing, mixing of different types of memory modules is not supported, slots 13 - 24 are available in two-processor configuration only, Patrol Scrubbing, Demand Scrubbing
Configuration Features
1 x 32 GB
RAM Supported
768 GB registered - ECC ¦ 1.5 TB Load-Reduced - ECC ¦ 3 TB 3DS registered - ECC
Type
No HDD
Type
1 x RAID - PCIe 3.0 x8
Controller Interface Type
SATA 6Gb/s / SAS 12Gb/s
Storage Controller Name
ThinkSystem RAID 9350-8i
Channel Qty
8
RAID Level
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60
Buffer Size
2 GB
Type
No optical drive
Monitor Type
None.
Graphics Processor
Matrox G200e
Video Memory
16 MB
Video Interfaces
VGA
Remote Management Controller
XClarity Controller (XCC) Enterprise
Bays
8 (total) / 8 (free) x hot-swap 2.5"
Slots
1 (total) / 1 (free) x LAN-on-Motherboard (LOM) ¦ 1 (total) / 0 (free) x PCIe 3.0 x8 (for internal storage controller) ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 ¦ 1 (total) / 1 (free) x PCIe 3.0 x8
Interfaces
1 x management - RJ-45 ¦ 3 x USB 3.0 (1 front, 2 rear) ¦ 2 x VGA (1 front, 1 rear) ¦ 1 x USB 2.0 (1 in front)
Included Accessories
Slide tool-less rail kit
Compliant Standards
TUV GS, BSMI CNS 13438 Class A, EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, CCC, RoHS, UL 60950-1, IEC 60950-1, FCC Part 15 A, GB 17625.1, GB 9254 Class A, VCCI Class A, KN24, EAC, KN22 Class A, NMB-3 Class A, GB 4943.1, BIS, NOM-019, EK1-ITB2000, EN 55022 Class A, CNS 14336-1, IEC/EN 60950-1, TR CU 020/2011, TR CU 004/2011, CAN/CSA-C22.2 No. 60950-1, AS/NZS CISPR22 Class A
Device Type
Power supply - hot-plug
Power Redundancy
Optional
Power Redundancy Scheme
1+1 (with optional power supply)
Installed Qty
1
Max Supported Qty
2
Voltage Required
AC 100-240 V (50/60 Hz)
Power Provided
750 Watt
80 PLUS Certification
80 PLUS Titanium
OS Provided
No operating system
ENERGY STAR Certified
Yes
ENERGY STAR Version
3.0
Service & Support
Limited warranty - 3 years - on-site - response time: next business day
Width
43.4 cm
Depth
71.5 cm
Height
4.3 cm
Weight
11.9 kg
